6500bph Pet Blower Machine

Product Description

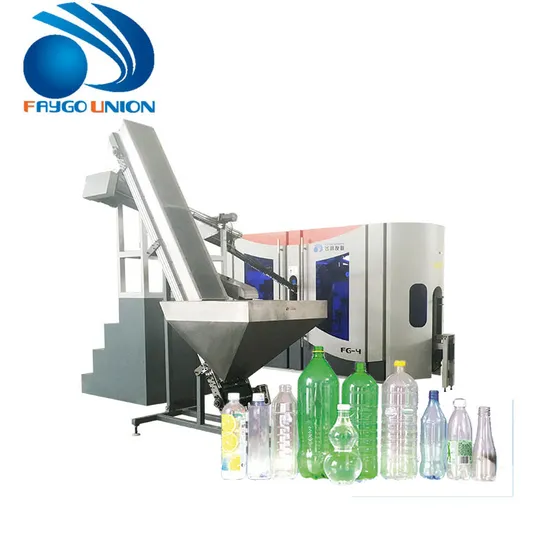

7000BPH pet blowing machine/Full-Auto Pet Bottle Blowing Machine
FG series full- water bottle blowing machine is the most stable two-step automatic stretch blow moulding machine. It has four cavities and the maximum capacity of the products is 2L. The capacity can be 6500-8000BPH, It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET etc.
The Full-Auto Pet Bottle Blowing Machine advantages:
1) Minimize distance of heating heats, maximize the heating efficiency;
2) Molularized design convenient for maintenance and changing changeovers;
3) Efficient and soft perform inlet system, ensure speed and preform protection;
4) Servo driving and cam linking movement blowing section.
Electric configuration used on our Full-Auto Pet Bottle Blowing Machine:
Magnetic valve& cylinder used Germany FESTO
Servo system choose Japan Panasonic
Frequency inverter& touch screen use Japan Mitsubishi
Blowing valve is USA PARKER
One-way valve& Throttle valve choose Germany FESTO
Reducing valves are Germany duray.
Our water bottle blowing machine advantages:
1)High Automatization for pet blow molding machine
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6800BPH(4-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Why you choose our Four Cavity Linear pet bottle blowing machine? Please check blow:
1) The unique cam linking system integrates mold-opening, mold-locking and bottom mold-elevating in onemovement, equipment with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed;
2) Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven, it saves more than 30% electricity consumption. Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature in the heating zone.
Full-Auto Pet Bottle Blowing Machine Technical parameters

Type			FG4	Mark
Specifications of bottle	Mould number(piece)		4
	maxi volume (mL)		2000
	maxi height (mm)		328
	maxi diameter (mm)		105
	Square bottle for max diagonal length (mm)		115
preform Specifications	Suitable inner bottle neck (mm)		20-25
	preform max length (mm)		150
Capacity (bottles / hour) at 17 g 500mL			7200
Electricity	Install power (kw)		51
	Heating oven total power (kw)		46
	Heating oven actual power consumption (kw)		26
	Voltage / frequency (V / Hz)		380v,50hz
	Allowed voltage fluctuation		±10%
HP Air	Pressure(bar)		30
	Capacity(m³/min)		4
Cooling Water	Mold water	pressure(bar)	4-6	Water chiller 6HP
		Suitable temperature range (ºC)	6-13
		Flow (L / min)	45
	Oven water	pressure(bar)	4-6	Water chiller 3HP
		Suitable temperature range (ºC)	6-13
		Flow (L / min)	22
Machine Specification	host machine dimension (m) length × width × height		3.3*1*2.3
	Weight (Kg)		3200

Full-Auto Pet Bottle Blowing Machine Blowing Machine
Full-Auto Pet Bottle Blowing Machine Heating Oven:
By rotary and soft preform loading system, the speed of preform feeding is ensured, menawhile, the preform neck is well protected.
Full-Auto Pet Bottle Blowing Machine Bottle Outlet:
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
Full-Auto Pet Bottle Blowing Machine Configuration

Item	Brand	Origin
Magnetic valve	FESTO	Germany
Cylinder	FESTO	Germany
Servo system	Panasonic	Japan
Frequency inverter	Mitsubishi	Japan
PLC	Mitsubishi	Japan
Touch screen	Mitsubishi	Japan
Blowing valve	Parker	USA
One-way valve	FESTO	Germany
Throttle valve	FESTO	Germany
Reducing valve	DURAY	Germany
