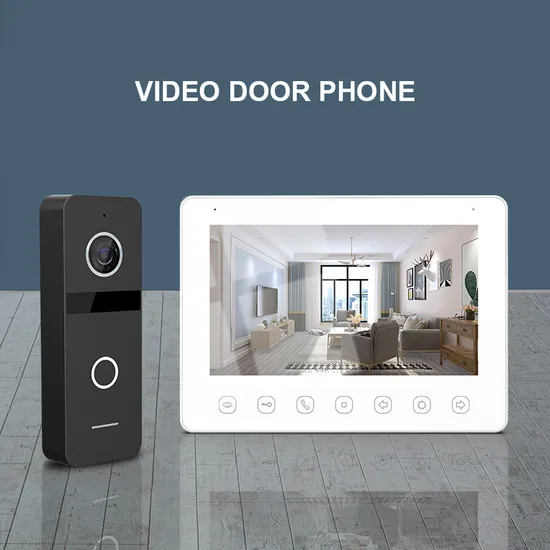

4-Wire 7" 1080P Video Doorphone with Touch Buttons and Metal Case Doorbell

Product Description

4-Wire 7" 1080P Video Doorphone with Touch Buttons and Metal Case Doorbell
Description: Monitor: 1.1080P 7" video door phone with touch buttons
2.Customize Melody & Voice message
3.Button light background
4.Support max.128G SD Card & flash max.100pcs picture
5.Lock control / Broadcast / Calendar / Alarm clock / No disturb
6.Monitor doorbell or CCTV cameras
7.Door-call transfers to other monitors
8.Make calls between monitors
9.Monitor listening to another monitor
10.Simple DVR motion detection/Photo frame/Multimedia manager
11.Auto leave message function
12.DC15V/0.8A
13.Dimension:188*136*22mm
Supports:
*2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
*1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
Doorbells: 1.AHD 1080P Outdoor Panel
2.Metal case & IP66 waterproof
3.4 wires connection
4.Surface/corner construction
5.Operating temperature: - 30 ºC to + 60ºC
6.Power: 10- 15V
7.Dimension: 131x46x20mm
Specification: Monitors:

Screen	Color TFT digital screen
Screen size	7''
Outdoor panel unlock release	Supports
Indoor monitor unlock release	Supports
Definition	1024*600
Type of signal	CVBS/1080P
Connection	4 Wires
Maximum length of line connection	100m
Video channels quantity	4
Additional monitors quantity	3
Memory block connection	Built in card-reader for micro SD card
Image capture	Supports
DVR with both video and audio	Supports
Power	DC15V/0.8A
Dimension	188x136x22mm

Doorbells:

Subscribers quantity	1
Camera	1/3'' Color CMOS
Angle of view	110°
Protection Standard	IP66
Type of signal	CVBS / AHD
Resolution	800TVL/1080P(Optional)
Construction	Surface / 30° angled mounting
Operating temperature	- 30 ºC to + 60ºC
Connection	4 wires
Lock control	Supports
Power	DC10-15V
Dimension	131x46x20mm

All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.

website: eeguard.en.made-in-china.com
FQA:-
Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.
Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.
Q: What's your warranty for your products?
E: 2 years after the shipment.
