Rubber mooney viscometer /factory price

Product Description

Product Description

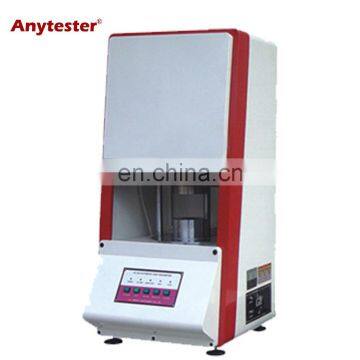

Application HY3320 Mooney Viscometer is used to determine the Mooney viscosity, scorch time and vulcanization index of natural rubber, synthetic rubber and regenerated rubber. It is necessary equipment for regenerated rubber, rubber and wire and cable industries. This machine conforms to ISO 289, ASTM D1646, JIS K6300, GB/T 1232.1, GB/T 1233, etc. Features1. Integrated multiple test functions: Pre-vulcanization test, Mooney viscosity test, stress relaxation test2. High accuracy of temperature control, large temperature range, fast heating rate3. Integrated die cavity, high accuracy 4. Sensitive and accurate torque measurement, in-built precision reduction gear box, high precision sensor and data acquisition system 5. Test data with high reproducibility6. Stable electrical properties Intelligent test software provides a powerful data query function, easy and convenient to operation Specification ModelHY3320Temperature rangeRT~200℃Temperature accuracy±0.5℃Temperature display resolution 0.1℃Torque unitkg-cm, lb-in, N-m MooneyMooney viscosity range 0~200 Mooney value Rotor speed 2±0.02r/minTest timeSettable Air pressure 65psiSpecimen volume 5cm3Language English and Chinese Power supplyAC220V 50HzDimensions 1310×560×620mm (W×D×H)Weight 350kgDate and test result VM: the min. Mooney value within 30s before the end of the viscosity test MV-(Viscosity): the Mooney value at the end of the viscosity test t18:Sorch time when the Mooney value is LM+18M and S rotor is usedt35: scorch time when the Mooney value is LM+35M and L rotor is usedM1+4: general Mooney viscosity, preheating for 1min, Mooney test for 4minTR80: required time when the stress relaxation reaches to 80%MV-t: Mooney value at time tLM: min. Mooney value in Scorch test T3: scorch time when the Mooney value is LM+3M and S rotor is usedT5: scorch time when the Mooney value is LM+5M and L rotor is usedMI: initial Mooney viscosity Me: Mooney value at the end of viscosity test MRe: Mooney value at the end of stress relaxation test
