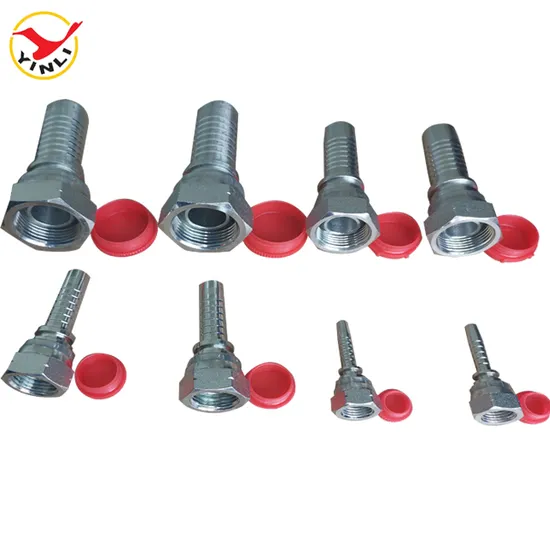

Stainless Carbon Steel Metric Ferrule Fittings Hydraulic Rubber Hose Fitting

Product Description

Product Description
Most Economical Delivery Metric Ferrule Fittings Hydraulic Hose Ferrule Fittings•Application:Industry,agricultural machinery, engineering machinery, such as excavator, truck, tractor and so on.
•Material:Carbon Steel, 20# and 45# carton steel
•Surface treatment:Zinc Plating (ZU:blue, ZC:yellow, ZC:white)

•Color:Yellow, white or blue
•Standard:Eaton
•Part No.: 00110, 03310, 00210, 01400, 00400, 00621

One piece hydraulic fittings

Bend hydraulic fitti

hydraulic fittings ferrule

Part No.	Description	Part No.	Description
00110	SAE100R1AT/DIN2022 EN853 1SN FERRULE	20511	METRIC FEMALE 24°CONE O-RING SEAL H.T.
03310	SAE100R2AT/DIN2022 EN853 2SN FERRULE	20541	45°METRIC FEMALE 24°CONE O-RING SEAL H.T.
00210	SAE100R2AT/DIN2022 EN853 2SN FERRULE	20591	90°METRIC FEMALE 24°CONE O-RING SEAL H.T.
01400	SAE100R12/20-24 FERRULE	20711	METRIC FEMALE 74°CONE SEAL
00400	R9A/R9R,4SP,4SH/10-16 & R12/06-16 FERRULE	20741	45°METRIC FEMALE 74°CONE SEAL
00621	SAE100R13/R15 FERRULE(Internal and external skiving )	20791	90°METRIC FEMALE 74°CONE SEAL
10411	METRIC MALE 24°CONE O-RING SEAL L.T.	22611	BSP FEMALE 60°CONE SEAL
10511	METRIC MALE 24°CONE O-RING SEALH.T.	22611D	DOUBLE HEX BSP FEMALE 60°CONE SEAL
12611A	BSP MALE 60°CONE SEAL	22641	45°BSP FEMALE 60°CONE SEAL
13011-SP	BSPT MALE	22691	90°BSP FEMALE 60°CONE SEAL
15611	NPT MALE	24211	ORFS FEMALE FLAT SEAL
16711	JIC 74°CONE SEAL	24241	45° ORFS FEMALE FLAT SEAL
20111	METRIC FEMALE MULTISEAL	24291	90°ORFS FEMALE FLAT SEAL
20191	90°METRIC FEMALE MULTISEAL	26711	JIC FEMALE 74°CONE SEAL
20211	METRIC FEMALE FLAT SEAL	26711D	DOUBLE HEX JIC FEMALE 74°CONE SEAL
20241	45°METRIC FEMALE FLAT SEAL	26741	45° JIC FEMALE 74°CONE SEAL
20291	90°METRIC FEMALEFLAT SEAL	26791	90°JIC FEMALE 74°CONE SEAL
20411	METRIC FEMALE 24°CONE O-RING SEAL L.T.	29611	JIS BSP 60°CONE SEAL FITTINGS
20441	45°METRIC FEMALE 24°CONE O-RING SEAL L.T.	87311	SAE FLANGE 3000PSI(ISO6162-1 SAEJ516)
20491	90°METRIC FEMALE 24°CONE O-RING SEAL L.T.	87341	45°SAE FLANGE 3000PSI(ISO6162-1 SAEJ516)

Relative products

Steel wire braided hydraulic hose(one or two steel wire braided )
SAE 100R1AT/DIN EN853 1SN/DIN-EN857 1SC/SAE 100R1A/DIN EN853 1ST
SAE 100R2AT/DIN EN853 2SN/DIN-EN857 2SC/SAE 100R1A/DIN EN853 2ST
SAE 100R5/SAE 100R16/SAE 100R17/Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral
DIN EN856 4SP/SAE 100R9/SAE 100R12/DIN EN856 4SH/SAE 100R13/SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3/SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7/SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/PTFE HOSE
Industrial rubber hose
steam hose
Dredging hose
Air/Water hose
Fuel/oil hose
Water suction/delivery hose
Sandblast hoseComposite hose
Cement rubber hose
Concrete rubber hose
Chemical rubber hose
Food hose
Flexible stainless steel metal hose
Company Profile
FAQ
Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.
Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand which are not allowed.
Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.
Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.
Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.
