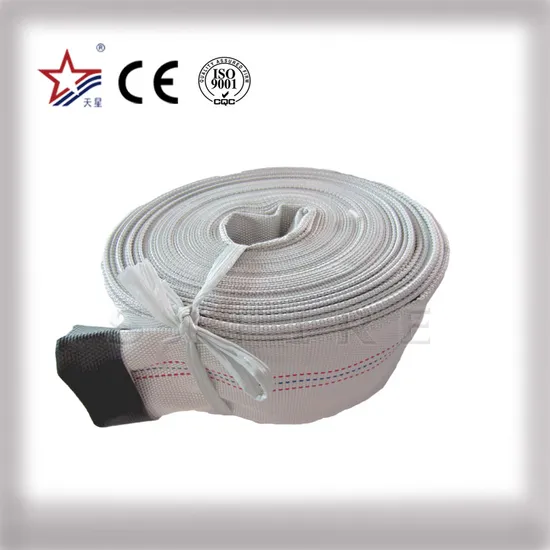

Fire Fighting Equipment Pressure Hose
Basic Info.
Model NO.
6-20bar
Hose Coupling Type
Hose Coupling
Fire Hose Length
20m
Working Pressure
0.8MPa
Diameter
1inch-10inch(19mm, 25mm, 40mm, 50mm, 65mm, Ect)
Lining
PVC or Rubber, PU, Copy Rubber
Weaving Type
Twill or Plain
Hose Coupling Structure
Plug-in
Color
White, Red or Others as Your Requirements
Size of Fire Hose
1.5 Inch,2 Inch ,2.5 Inch ,3 Inch,4 Inch,6 Inch ,
Wokring Pressure of Fire Hose
6 Bar -25bar(1.5MPa-7.5MPa
Bursting Pressure of Fire Hose
15 Bar - 75 Bar (1.5MPa-7.5MPa)
Longitude
High Intensity Polyester Filament
Latitude
High Intensity Polyester Fibers or Yarns
Length
10-30m/Roll
MOQ
3000meters
Type
Fire Hose
Certification
Cccf/ISO9001:2008/En14540:2014
Transport Package
Packing by PP Bags or Cartons
Specification
100-8-20M
Trademark
Tianxing
Origin
Quanzhou, Fujian, China
HS Code
5909000000
Production Capacity
80000m/Day
Product Description
fire fighting equipment pressure hoseTechnical parameter 1)The lining of fire hose : PVC
The jacket of fire hose : high intensity of polyester filament ( twill/plain ).
2)There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance
3) The fire hose is thinner and softer, lighter and more convenient to use.
4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting.
5) The color of fire hose : white, red, etc or according to your requirement
6) The length of fire hose : 10m - 30m, or according to your requirement
7)The packing of fire hose: woven pp bag or carton.
8)The certificate of fire hose: CCCF, ISO9001:2008, CE(EN14540:2014)
9)The usage of fire hose: irrigation or agriculture
Technical Requirement:
| Diameter (Inch/mm) | Working Pressure (MPa/BAR/PSI) | Testing Pressure (MPa/BAR/PSI) | Bursting Pressure (MPa/BAR/PSI) | Length (M) |
| 1 inch / 25mm | 0.8mpa / 8bar / 120psi 1.0mpa / 10bar / 150psi 1.3mpa / 13bar / 195psi 1.6mpa / 16bar / 240psi 2.0mpa / 20bar / 300psi | 1.2mpa / 12bar / 180psi 1.5mpa / 15bar / 220psi 2.0mpa / 20bar / 300psi 2.4mpa / 24bar / 360psi 3.0mpa / 30bar / 450psi | 2.4mpa / 24bar / 350psi 3.0mpa / 30bar / 450psi 3.9mpa / 39bar / 580psi 4.8mpa / 48bar / 720psi 6.0mpa / 60bar / 900psi | 0-30m |
| 1-1/2 inch / 40mm | ||||
| 2 inch / 50mm | ||||
| 2-1/2 inch / 65mm | ||||
| 3 inch / 80mm | ||||
| 3-1/2 inch / 90mm | ||||
| 4 inch / 100mm | ||||
| 4-1/2 inch / 115mm | ||||
| 5 inch / 125mm | ||||
| 6 inch / 150mm | ||||
| 8 inch / 200mm |
