CNC Oil Country Lathe Machine Qk1350 Horizontal Oil Country Lathe CNC Machine

Product Description

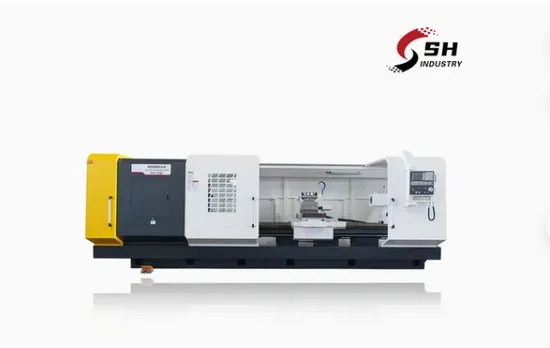

CNC Oil Country Lathe Machine QK1350 Horizontal Oil Country Lathe CNC Machine
Product Description
CNC PIPE THREADING LATHE INTRODUCTION
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
FEATURES
Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
Technical Specifications:

SPECIFICATION	Units	QK1343	QK1350
Swing over bed	mm	1000	1200
Swing over cross slide	mm	610	710
Distance between centers	mm	1500/3000	1500/3000
Pipe threading range	mm	270-430	330-510
Guideway width	mm	755	755
Max. load capacity	T	6	6
Spindle bore	mm	440	520
Spindle speed steps	-	VF. 3 steps	VF. 3 steps
Spindle speed range	rpm	8-205	8-190
Chuck	mm	φ1000 4-jaw electric	φ1000mm 4-jaw electric
Turret/tool post	-	CNC turret 4 position	CNC turret 4 position
Tool shank size	mm	40 x 40	50 x 50
X axis travel	mm	520	520
Z axis travel	mm	1250/2750	1250/2750
X axis rapid traverse	mm/min	4000	4000
Z axis rapid traverse	mm/min	4000	4000
Tailstock quill diameter	mm	φ160	φ160
Tailstock quill taper	-	MT6	MT6
Tailstock quill travel	mm	300	300
Main spindle motor	kW	22	22
Coolant pump motor	kW	0.125	0.125
Weight for 1500	kg	13000	15000
Weight for 3000	kg	14000	16000
Dimension for 1500	mm	5000x2220x2120	5000x2300x2200
Dimension for 3000	mm	6500x2220x2120	6500x2300x2200

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
