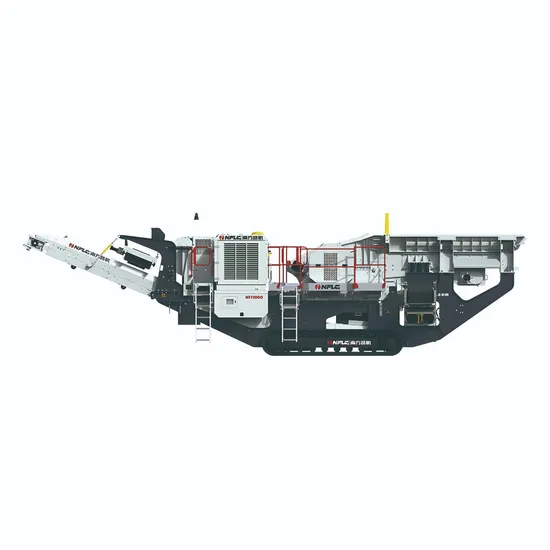

Nfj Series Tracked Mobile Jaw Crusher

Product Description

NFJ
Series Tracked Mobile Jaw Crusher
NFLG tracked mobile jaw crusher is equipped with the newly optimized and upgraded JW series jaw chamber enlarged feed port design.Combined with long crushing stroke, small meshing Angle and larger effective stroke at the bottom of the crushing chamber, the crushing chamber can work efficiently from the top to the bottom. In granite,basalt, diabase and other high hardness, high abrasive natural stone processing applications have excellent performance. Product Description
Product Parameters

Model	Crusher	Throughput(mtph)	Feeding port dimension(mm)	CSS(mm)	Drive method	Power	Transportation dimension(m)	Weight(t)
NFJ1060	JW1060	350	1000×660	40-140 (standard ) 65-165 (optional)	Hydrostatic drive	224	14.1×2.6×3.4	35 standard configuration
NFJ1175	JW1175	475	1070×762	75-145 (standard ) 105-175 (optional) 45-115 (optional)	Hydrostatic drive	261	14.5×2.9×3.5	52 standard configuration
NFJ1280	JW1280	610	1200×800	75-200	Hydrostatic drive	310	15.7×3×3.8	68.5 standard configuration
NFJ1480	JW1480	750	1400×820	100-225	Hydrostatic drive	328	18×3.5×3.8	80 standard configuration

Detailed Photos
Famous brand engine provides power, stable and reliable;
Hydrostatic drive, more powerful power;
The discharge port is hydraulically adjusted and can run in reverse to discharge blocked material, which can be adjusted quickly, reducing the time of shutdown and adjustment;
The jaw crusher supports reverse operation to remove blocked materials,greatly reducing equipment downtime;
The powerful vibrating feeder can automatically adjust the speed to keep, the crusher operating at full load to achieve the ideal productivity;
Advanced electric control system, easy to operate. Company Profile
After Sales Service
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China.
Core products cover:
A. Asphalt Mixing, Concrete Mixing and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solution, Waste Sludge & Soil Recycling Solution and Decoration Waste Processing Solution(Construction Waste Processing).
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit
5:What about the warranty time?
A:12 months after shipment
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
