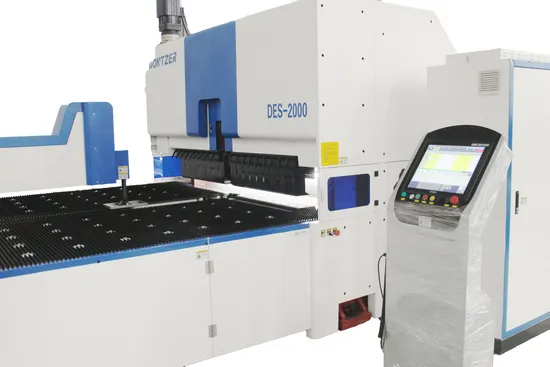

Doblado De Placa De Acero De 1400 mm / Maquinaria Automá Tica De Doblado CNC/ Má Quina De Freno De Prensa

Doblado De Placa De Acero De 1400 mm / Maquinaria Automá Tica De Doblado CNC/ Má Quina De Freno De Prensa

US$75,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DES-2000
Warranty
1-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Bending Length
2000mm
Bending Height
175mm
Bending Thickness
0.35mm
Bending Degree
0-360°
Accuracy of Bending Angle
±1°
Accuracy of Feeding Length
±0.1mm
Clamping Method
Sucked or Pressing
Windows CE
Windows CE
Noise Level
≈40dB
Peak Power
22kw
Weight
18.5 Tons
Transport Package
Pallet, Foam and Plastic Film
Specification
5900* 2900* 3200MM
Trademark
Dontzer
Origin
China
HS Code
8462219000
Production Capacity
300 Sets/Year

Packaging & Delivery

Package Size
1203.00cm * 235.00cm * 239.00cm
Package Gross Weight
18500.000kg

Product Description

Doblado de placa de acero de 1400 mm / Maquinaria automática de doblado CNC/ Máquina de freno de prensa para acero metálico, carbono,aluminio acero
Product Parameters
Model DES-1200 DES-1400 DES-2000 DES-2500
Max. Continuous Bending Speed ≤0.5sec/each bending ≤0.2sec/each bending ≤0.2sec/each bending ≤0.2sec/each bending
Max. Bending Length 1200mm 1400mm 2000mm 2500mm
Bending Height 175mm 175mm 175mm 175mm
Max. Bending Thickness stainless steel 1.0mm 1.0mm 1.0mm 1.0mm
Carbon steel 1.5mm 1.5mm 1.5mm 1.5mm
aluminum 1.6mm 1.6mm 1.6mm 1.6mm
The rest material can be customized
Min. Bending Thickness 0.35mm 0.35mm 0.35mm 0.35mm
Bending Degree 0-360° 0-360° 0-360° 0-360°
Accuracy of Bending Angle ±1° ±1° ±1° ±1°
Accuracy of Feeding Length ±0.1mm ±0.1mm ±0.1mm ±0.1mm
Operating system Windows CE Windows CE Windows CE Windows CE
Clamping Method Sucked or pressing Sucked or pressing Sucked or pressing Sucked or pressing
Throat Depth 180mm or customized 180 mm or customized 180 mm or customized 180 mm or customized
Min. One-step Forming Size on All Four Sides 150*150mm 150*150mm 150*150mm 150*150mm
Min. One-step Forming Size on Two Sides 220*220mm 220*220mm 220*220mm 220*220mm
Noise Level ≈40db ≈40db ≈40db ≈40db
Outline Dimension (mm) 3200* 2100* 2900 3400* 2300* 2900 5900* 2900* 3200 6000* 3400* 4200
Product category
Certifications
Company Profile

FAQ

1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing.
