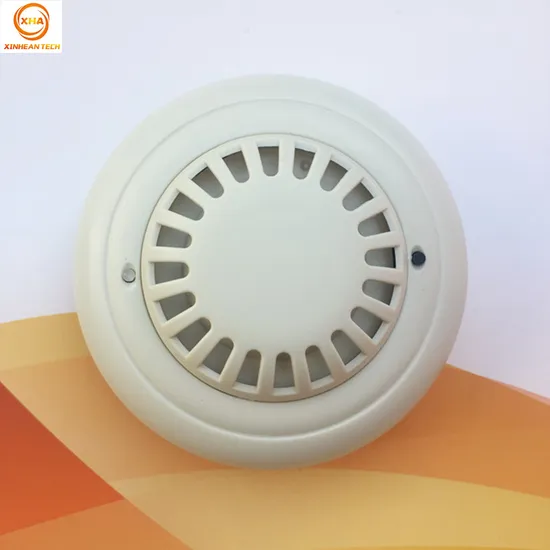

4 Wire 12V/24V 220V Smoke Alarm Detector with Relay No/Nc Output for Fire Alarm System

Product Description

Introduction
4-Wire smoke alarm with relay output is common used for industrial control equipment, power cubicle, charging pile, alarm bell etc fire warning system. This smoke alarm has the characteristics of high sensitivity, stability and reliability, small power consumption and durability. Easy to install.
Parameters

Product Name	smoke detector with relay output	Rated operational voltage	DC12~24V/220V
Sound pressure level	≥85db	Static current	≤300uA
Alarm current	≤90mA	Work temperature	-10°C~+50°C
Output	Sound&light alarm, relay output	Humidity	≤95%.
Product standard	GB4715-2005,CE	Dimension	Φ105mm,H50mm

Functions
1. Detection.
Press detection button, it can fully check the alarm functions. And the alarm light flashes quickly with a rapid sound.
2. Alarm.
In the normal environment, The alarm will flash automatically every 10S and automatically detects the concentration of smoke in the surrounding environment at regular intervals(around 1.6s),If the smoke concentration is close to the alarm value, the alarm starts to perform intelligent calculation, and the alarm indicator light starts to flash. If the calculation result reaches or exceeds the alarm value, the alarm will start the sound-light alarm and start the relay. When the ambient smoke concentration drops below the alarm value, the alarm will automatically return to the normal working state.
3. Output.
Passive contact output. Contact capacity 24V/1A, NC or NO two kinds of output.
Installation
First drill two mounting holes with a diameter of 5mm on the ceiling 43~ 62.5mm apart. Fix the alarm base with the plug and screw. Then connect the power line and output line.install the alarm to the base in the correct direction. Press down and tighten clockwise, finally turn on the power, it works.
Product range
Addressable fire alarm system
Wireless alarm system
Electrical fire monitor system
Extinguishing control system
Fire door monitor system
Standalone smoke detectors and combustible gas detector
4-wire smoke detectors with relay output.
