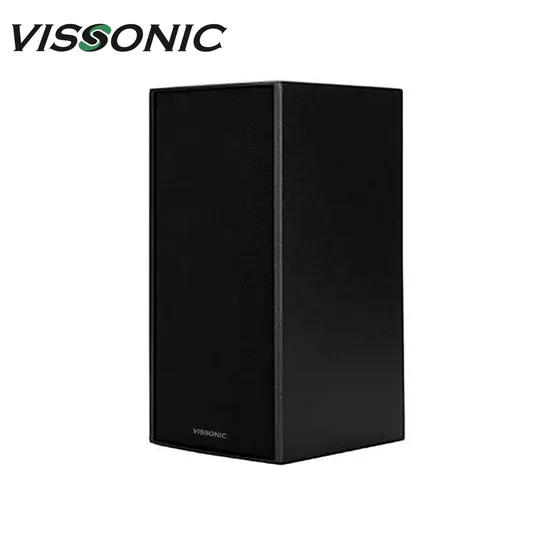

DSP Wired Poe Loud Speaker with Large Power

Product Description

Overview

The cabinet of speaker is made of multi-layer high-density birch plywood. The concave and convex groove process is used to make the cabinet more solid. At the same time, the use of high-strength reinforcement nails causes the resonance of the cabinet. The energy distortion is minimized. The cabinet is designed to be moisture-proof and dust-proof to ensure stable operation in dusty and humid environments. Also equipped with dust-proof and waterproof aviation sockets.
It's suitable for high-end performances, conferences, evenings and concert system.

Parameters

Frequency response (± 3dB): 80Hz-20khz
Unit: 1 × 6.5 "+ 1 × 1.33" / 36mm + 34mm (VC) Nominal impedance: 8 Ohm
Power: 110W (AES), 440W (PEAK)
Sensitivity: 95dB / w / m
Maximum sound pressure level: 118dB
Coverage angle: H90 ° × V90 ° Socket: 2 × NL4 speakon Product size (W × D × H): 215 × 230 × 359mm
Net weight: 6.9kg

Conference system diagram

Application
