Adjustable Excavation Depth 4ud-130 1300mm Working Width Potato Turkya Harvester

Product Description

Product Description
AUTOMATIC LOADING HARVESTER
Potato automatic loading harvester has good performance and efficiency and can harvest crops directly into the transport truck.
It can be made according to the actual planting situation of farmers with the corresponding width of the harvester, which is mainly used for harvesting Potatoes, sweet potatoes, and other underground root crops.
Potato automatic loading harvester has automatic loading and harvesting efficiency high, low damage rate, light operation, no vibration, no blocking grass, fast soil leakage, simple structure, long service life, and so on.
These machines come in different sizes and types, including manual, semi-automatic, and automatic models, as well as those specifically designed for small-scale or large-scale farming operations.
Product Parameters

4UD-83 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1100*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1100*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	432kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	830mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.14 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥40Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	600mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

4UD-90 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1200*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1200*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	436kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	900mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.14 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥40Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	600mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

4UD-100 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1300*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1300*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	450kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	1000mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.19 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥50Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	600mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoretical values,please refer to actual values.

4UD-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1400*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1400*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	460kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	1100mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.21 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥50Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	600mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoretical values,please refer to actual values.

4UD-120 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1500*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1500*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	485kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	1200mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.23 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥60Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	600mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

4UD-130 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1600*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1600*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	610kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	1300mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.25 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥70Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	880mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

4UD-160 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1900*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1900*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	660kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	1600mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.29 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥70Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	880mm	24	Common Land Roller	Optional Device
Note:The values in the specification table are theoreticalvalues,please refer to actual values.

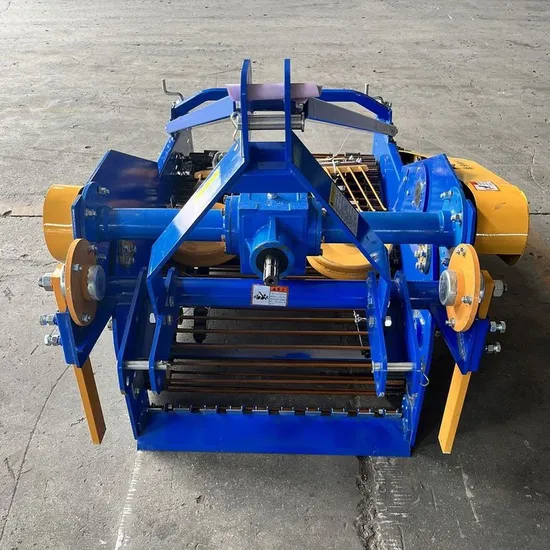

Detailed Photos
MULTIFUNCTIONAL HARVESTING:
This machine is designed to harvest multiple crops, including potatoes, sweet potatoes, and peanuts, making it an ideal investment for farmers with diverse agricultural needs.
RELIABLE PERFORMANCE:
The machine features a gear drive system and a powerful motor, ensuring reliable performance and durability in various farming conditions.
SUITABLE FOR VARIOUS FARM SIZES:
This harvester is suitable for farms of all sizes, including small, medium, and large-scale operations, making it a versatile addition to any agricultural operation.
OUR ADVANTAGE:
1.It features working efficiency, lower breakage rate, and lower skin break rate.
2. Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3. The penetrating angle of the excavating device is the same as the elevation angle of the transfer & separate device. It effectively solves the problem of soil accumulation after shoveling.
4. Matching power is the common four-wheel tractor, it features wide adaptation, strong applicability, low investment, and ease of operation.
OUR FEATURE:
1. Single-row potato harvester machine for sale can be used in various tubers harvest, such as potato, sweet potato, peanut, garlic, and so on.
2. This Single-row potato harvester machine for sale has high efficiency, low breaking rate, and fast working speed without vibration.
3.The Single-row potato harvester machine for sale has no block grass & soil leakage fast, simple structure & durable.
