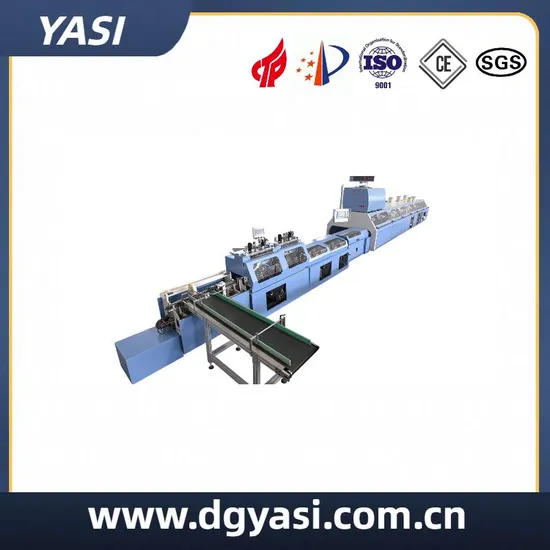

Auscp SL70 High-Speed Backgluing and Backlining Machine Perfect Binding Notebook Making Machine

Product Description

Equipment installation plan:
New design concept:
The AUSCP SL70 High-Speed Backgluing and Backlining Machine is the 7th generation product independently researched, designed, and manufactured by Dongguan Yasi Mechanical Equipment Co, Ltd With a production speed of up to 4,200 books/hour The machine design overturns the traditional synchronous belt conveyor, instead opting for a new one-book, one-clamp design philosophy, ensuring that books are neatly and uniformly placed, completely eliminating the possibility of loose or misaligned book bindings that frequently occur in traditional models The product performance reaches the top tier of book blocks processing and shaping machines
Technical Data:

Max operating speed	70book blocks per minute	Power consumption	265 KW
Max book block size	460×300 mm	Standard voltage	380V 50Hz 30kw 380V 50Hz
Min book block size	148×100 mm	Air consumption (external supply)	035 m3 /min 8 bar
Thickness of book block	3-60 mm	Max pressure	100 KN
Thickness of folded liner	60-150g	Dimensions (length x width x height)	22800×3850×1735 mm
Thickness of single folded liner	120-300g	Net weight	10500 kg
Max drying temperature	150ºC
	L H S Max size 300 460 60mm Min size 100 148 3mm		AUSCP SL70

Functions & features:
Electrical Control System: The system is implemented through photoelectric detection for online control, with the entire line adopting linked conveyance Simply placing book blocks in the machine, the whole production process will be automatically completed With the human-machine interface touch panel, switching specifications are more efficient, straightforward, and effortless Main driving parts and electrical components are made of imported materials, durable, and cost-effective Book blocks Conveyance: Lock-threaded book blocks are placed in conveyance mechanisms, which are then conveyed by preset speeds Book blocks Vibration: The machine features a function whereby the book blocks vibrate to align and conveyed, letting off all the air in between and ensuring a flat surface Double-Side Paper Lamination: Add lamination paper to the feeder, and the machine automatically completes the front and back protective covers via the circulating adhesive device The adhesive ensures that the resulting attachment is strong and reliable This feature allows a reduction in workforce by 2-3 persons, lowering costs and increasing productivity Book blocks Conveyance Lamination: Features 30 clamps, with each book blocks having a designated clamp This cyclic system ensures uniform and flattened book blocks are firm and consistent Glue Application: The machine uses hot melt and white latex function Includes 1 set of hot melt furnace, 2 sets of white latex furnaces, and 1 set of side glue furnace Drying: The machine has a hot air function and an infrared long-distance heating function, energy-saving and environmentally friendly Wrapping: Allows for the automatic packaging of book blocks, and automatically cuts reel paper to the desired width The machine also features automatic gluing, automatic fitting, support tower pressing, shaping, and a solid, aesthetically pleasing back cover structure Pressing and Shaping: It adopts the latest tower clamp design, which provides a strong compression force, strong product forming and aesthetic appearance Can form a complete book block processing line with a three-sided cutting machine, completing high-precision book blocks cutting and outputting to subsequent workstations
