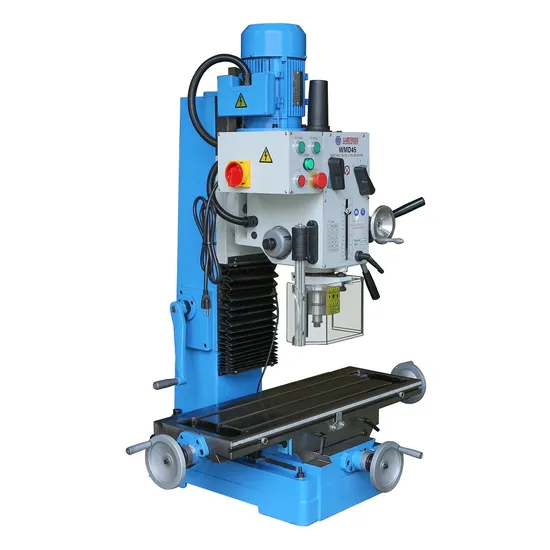

Drilling and Milling Machine Wmd45
Basic Info.
Model NO.
WMD45
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Condition
New
Transport Package
Wooden Packing
Specification
850X750X1150mm
Trademark
WEISS
Origin
China
HS Code
8459699000
Production Capacity
1000
Product Description
SPECIFICATIONS| WEISS MODEL | WMD45 |
| Item No. | 10201450 |
| Max. drilling capacity | 40mm |
| Max. end milling capacity | 32mm |
| Max. face milling capacity | 80mm |
| Table size | 800x240mm |
| Table travel (X,Y) | 560X230mm |
| T-slot | 3x14mm |
| Spindle taper | MT4 or R8 or ISO30 |
| Spindle stroke | 120mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 75-1600rpm |
| Spindle incline angle | ±90° |
| Distance from spindle to column | 258mm |
| Distance from spindle nose to table | 460mm |
| Motor | 1100W |
| Packing size | 850x750x1150mm |
| Net weight | 320KG |
Standard Accessories
| Drill chuck 3-16 B16 |
| Drawbar |
| Arbor MT2/B16-M10 |
| Digital Depth Ruler |
| Spindle Cover with Micro Switch |
| Toolbox and tools |
Optional Accessories
| Tapping Function |
| Keyless Drill Chuck 3-16mm |
| ER 25 Collet Chucks MT3-ER32(12pcs) |
| Vice BMS100 |
| HSS 19 pcs Drill sets |
| End Mill Sets 20pcs 3-20mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M12 |
| Oil Tray |
| Stand |
| Luxury Stand |
