8 Cbm Vertical Cow Sheep Farm Tmr Mixing Machine Cattle Feed Crusher Mixer Wagon CE

Product Description

8 CBM Vertical Cow Sheep Farm TMR Mixing Machine Cattle Feed Crusher Mixer Wagon CE
Products Introduction: Dairy Farm Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed
feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency.
The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality,
reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.
Specification of the horizontal feed mixer:

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Specification of the vertical feed mixer:

Model	LBL-5	LBL-9	LBL-12	LBL-16
Productivity (t/h)	2-3	4-5	6-7	8-10
Power (kw)	15	22	30	22+22
Mixing Shaft	1pc major mixing shaft	1pc major mixing shaft	1pc major mixing shaft	2pc major mixing shaft
Blade Type	Large serrated knife
QTY of Blade (pcs)	5	8	8	16
Weighing System	4 sensors, 1 display
Bottom Plate Thickness (mm)	14	16	16	18
Side Plate Thickness (mm)	5	8	8	8
Dimension (m)	3.1*1.9*2.1	3.9*2.3*2.5	4.6*2.4*2.6	5.8*2.5*2.6
Weight (kg)	1900	2800	3600	5000

Belt Conveyor Tricycle Mixer Spreader:

Model	LB-5
Productivity (t/h)	2-3
Power (kw)	35HP
Blade Type	Large serrated knife
QTY of Blade (pcs)	5
Thickness of bottom plate	14mm
Side plate thickness	5mm
Weight	3300kg
Size	4500*1900*2400mm

It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
According to the design structure points,a fixed feed mixer and self-propelled feed mixer.
Raw Material and Final ProductThe raw material could be used for chopping and mixing of all kinds of forage grasses, crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
Farm Complete Product Line for Cattle/Cow Feed:
More pictures of feed mixer.

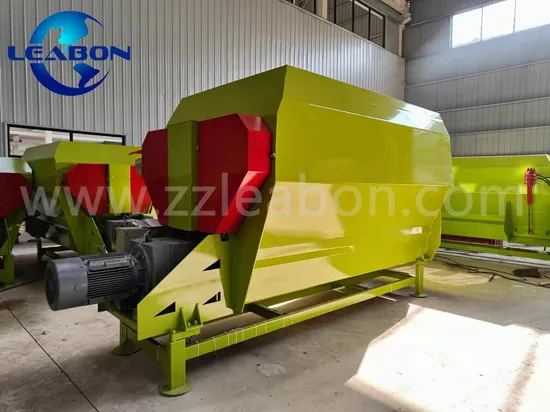

1). Horizontal Type TMR Silage Feed Mixer:2). Verticl TMR Feed Mixer:
Related Products
Shredder&TMR
Silage Baler&Wrapper
Animal Feed Pellet Machine
Customer feedback
Our company
FAQ
Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.

Pls contact us if you are intersted in our: 8 CBM Vertical Cow Sheep Farm TMR Mixing Machine Cattle Feed Crusher Mixer Wagon CE.
