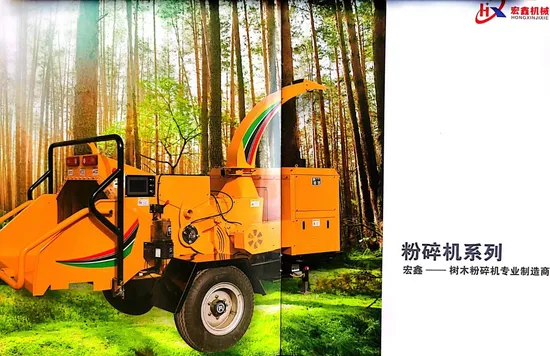

Mobile Diesel Powered Chipping Capacity Wood Chippers

Mobile Diesel Powered Chipping Capacity Wood Chippers

US$36,000.00-88,000.00 1 Set (MOQ)

Basic Info.

Model NO.
1300 1400 1500 1600
Automatic Grade
Full-Automatic
Warranty
2 Years
Engine
430HP 480HP
Feed in Conveyor Length
6m or as Required
Discharge Conveyor Length
7.5m Length
Mobile
6 Tyres
Transport Package
Plywood
Specification
9m*2.4m*2.5m
Trademark
HX
Origin
China
HS Code
8465960000

Packaging & Delivery

Package Size
900.00cm * 270.00cm * 340.00cm
Package Gross Weight
23000.000kg

Product Description

The main engine feed tank is six meters length, so during transportation and installation, the main engine is equipped with double axle
The tyre is equipped with a traction frame and a steering tyre behind it, can be hauled by truck or tractor.
The machine can be installed directly on the ground .
The feed in conveyor is driven by hydraulic motor, and the hydraulic motor can be adjusted by manual valves
The feed speed can be fast and slow, the structure is strong, the wear resistance is high, the inlet diameter is large, and the feeding is more
Smooth.
The chipper is composed of frame, rotor, feed conveyor and hydraulic control system,diesel engine
Parameters:
Diesel engine power 480HP or 430HP
Feed in width and length 1300mm width,6m length
Rotor 4,6,or 8 pcs blades rotor,rotor diameter:800mm
Mobile system 6 tyre- mobile
Feed in size 1300mm*600mm
estimated capacity per hour 12-18 tons wood chip
discharge conveyor 7.5m length foldable conveyor
Screen hole size as required

Pictures
Workshop manufacturing
Clients visiting
Our office
