Myzg Factory Digger Loader Backhoe Small Mini Excavator 1 1.2 2 3 3.5 Ton Earth-Moving Equipment Construction Machinery

Product Description

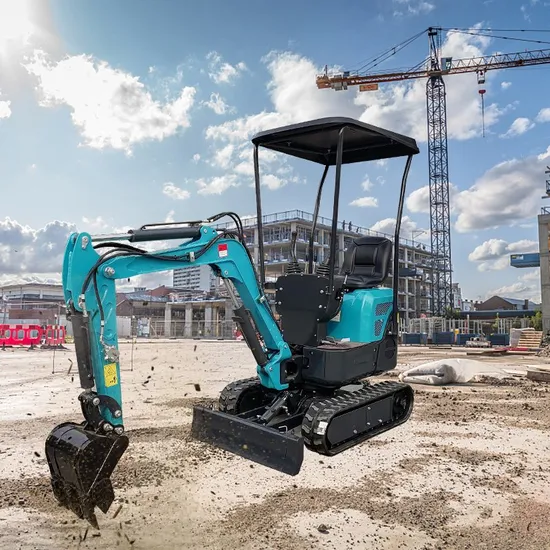

MYZG Factory small mini wheel excavator digger loader backhoe 1 1.2
2 3 3.5 ton Earth-moving equipment construction machinery
A small excavator is a small, full-featured construction machine commonly used in tight Spaces and light construction tasks.The main characteristics of small excavators include small size, flexible operation, strong versatility, energy saving and high efficiency. They are usually hydraulically driven and are capable of digging,loading, levelling and handling.
These equipment are widely used in construction, landscaping,agricultural irrigation, urban maintenance and other fields.In the construction field, small excavators are used for foundationconstruction, earthwork excavation and pipeline laying. In agriculture, they can be used for irrigation channel repair, plot
leveling and fruit tree transplanting. In municipal engineering, it is often used for road maintenance, drainage system construction and greening projects. In addition, they are also widely used in mines,
river dredging and garden construction.In general, small excavatorsplay an important role in improving construction efficiency and reducing labor costs with their portability, flexibility and versatility.
Product specification

SPECIFICATION	Unit
Operating Weight	1080 kg
bucket capacity	0.02m³
Working device form	backhoe
Model	Yanmar 3TNV70 / 3TNV74F
Rated power	10.3kw /11.2 kw
Model	Kubota D722-EF11
Rated power	10.2kw/2500rpm
Displacement	0.854L
Maximum torque	51.9N.m/1600 r/min
Max travel speed	1.5km/h
swing speed	11rpm
Max. Gradeability	30°
Ground specific pressure	32.8kgf/cm2
Track material	Rubber
Type of track tension device	screw adjustment
Pump type	Gear pump
Working pressure	16Mpa
Flow rate	18L/min
Hydraulic oil tank capacity	15L
Engine fuel tank capacity	1.8L
Fuel tank capacity	11L
Max. Digging radius on ground	2500 mm
Max. Digging radius	2900mm
Max. Digging depth	1700 mm
Max. Digging height	2600 mm
Max. Dumping height	1800 mm
Max. Vertical digging depth	1600 mm
Min. Rotation radius	1250 mm
Max. Upgrade height of bulldozer blade	325 mm
Max. Digging depth of bulldozer blade	175 mm
Wheelbase	910mm
Total length of track	1235mm
Platform ground clearance	370mm
Counterweight turning radius	795mm
Chassis width	930mm
Track width	180mm
Track height	320mm
Length	2120mm
Height (From seat to ground)	1500mm
Total height	2210mm

Product Features
1.Simple structure, small footprint, parking operation is not troublesome.
2.Simple and convenient transportation, low energy consumption, high efficiency, wide adaptability, little impact on the surrounding environment, good environmental adaptability.
3.It costs less than large excavators. In most cases, the same digging effect as a large excavator can be achieved.
4.The cost includes purchase price and construction cost, which is practical and economical.
The workmanship is very fine. The appearance is generally treated by spraying plastic, not easy to rust, and the service life is greatly extended.
Certifications
Packaging & Shipping
Our Factory
Shandong Mingyu heavy industry machinery co.,ltd. Shandong Zhuogong Machinery equipment Co.,Ltd. Laizhou Zhuo Kun Import And Export Trading Co.,Ltd.(MYZG) was founded in 1996. Since then, MYZG has stood at the forefront of the Chinese small heavy machinery industry and developed into one of the most influential, and the most competitive enterprise groups with the complete product varieties and series. Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG are the leader in China's mini excavator and wheel loader machinery industry, has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment. It only takes ten minutes for the painting operation of all parts of a whole machine. We have advanced scientific research test facilities, intelligent inspection system. Automated and intelligent production, in order to build an industry digital factory. We have the world's most advanced shaft sleeve product processing equipment and very strict quality supervision and control,the service life of our parts is more than 15-45 times that of ordinary products.
In terms of production management,we have professional training and learning and modern management mode,every worker and manager masters the most popular manufacturing and management concepts.The whole production process is controlled by ERP system,from the smallest stainless steel part, to the patented diamond shaft,the most advanced anti-corrosion technology.
MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the spare parts are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei,Deutz,Cummins, Mitsubishi,Changchai, Xinchai,Kubota,Yanmar ,Isuzuetc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.

FAQ
Q1:HOW is Your Price Compare With Other Factories?
A: We are professional mini excavator manufacturers with more than 20 years produce and export experience we can sure to provide you more competitive price than other factories.
Q2:How is Your Delivery Time?
A: In general circumstance, we can have an immediate delivery of regular machines for our clients within 30 days, because we have common parts in stock,so for standard mini excavator we can delivery in very shot time and for some special order requests we can also try to delivery to you as our confirmed date.
Q3:HOW Soon Can You Respond Client Inquiries?
A: Our team is consisted of a group of diligent and dynamic people, working 24/7 to respond client inquiries and questions all the time.
Q4:Which Payment Terms Can You Accept?
A: Normally we can work on T/T term or L/C term, sometime DP term.
(1) On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for long-term cooperating client.
(2) On L/C term, a 100% irrevocable L/C without "soft clauses" from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
Q5:Which Incoterms 2012 Terms Can You Work?
A:We are a professional and sophisticated international player, can handle all INCOTERMS 2020 terms, and we normally work on regular terms such as FOB, CFR. CIF etc
Q6:How Long Will Your Price be Valid?
A:We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations:
(1) The rate of USD: MB varies significantly according to the international currency exchange rates;
(2) Manufacturers / factories adjusted the machine price, because of the increasing labor cost and raw material cost.
Q7:What Logistics Ways You Can Work For Shipment?
A: We can ship mini excavator or other MHE products by various transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Europe, North America, Africa, South America, Middle East,Oceania and Southeast Asia etc., either by container or RoRo/ Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan,Turkmenistan etc., we can send by road or railway.
(3) For light spare parts in urgent demand, we can send it by international courier service, such as DHL, TNT, UPS, or Fedex.
ANOTHER
Hello dear,for the mini excavator you are interested in ,could you provide more details as below?
1.Is diesel mini excavator or electric mini excavator?
2.Loading capacity:?ton
3.Lifting height:?m
4.Other requirements?
If I know those,we will quote our best offer to you at once.
