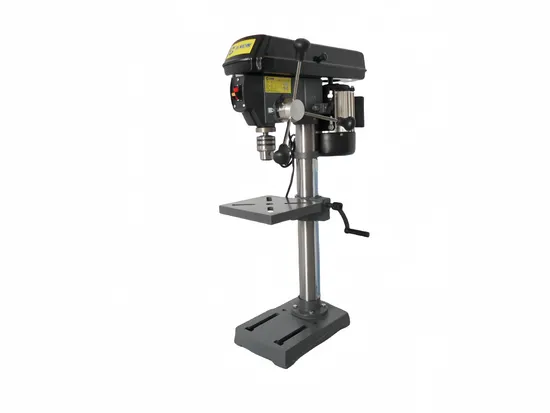

12 Speed16mm 10inch Drill Press for Workshop
Basic Info.
Model NO.
DP161001
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
3-16mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Condition
New
Model
Dp161001
Motor
450W
Swing
252mm
Height
840mm
Box
680X420X240
Nw./Gw.
24/26
Transport Package
Box
Specification
680X420X240
Trademark
Jingren
Origin
China
HS Code
8459290000
Product Description
Product DescriptionDiscover the unparalleled efficiency and versatility of our 10-Inch 16mm Precision Drill Press, expertly designed with 12 distinct speed settings to cater to all your drilling needs. Engineered for precision, this robust and reliable tool ensures seamless operation, elevating your craftsmanship to new heights.
Detailed Photos
Certifications
CE
Product Parameters
| MODEL | DP161001 |
| MOTOR | 450W |
| Swing | 252mm |
| Max.Drilling capacity | 16mm |
| Taper | B16/JT33 |
| Spindle travel | 60mm |
| Spindle Speed | 12speed |
| Speed range 50HZ | 230-2470rpm |
| Speed range 60HZ | 280-3000rpm |
| Table Size | 197x202mm |
| Base size | 348x210mm |
| Column Diameter | ¢59.5mm |
| Max.distance from spindle end to surface of table(mm) | 406mm |
| Max.distance from spindle end to surface of base(mm) | 525mm |
| Table Tilting Range | 0-45° |
| Overall Height | 840mm |
| NW./GW. | 24/26 |
| Carton size | 680x420x240 |
| Q'ty/20 container | 400 |
FAQ
Q: Are you a manufacturer or a trading company?
A:We have been in this industry for more than ten years, with our own manufacturing plant, and our own research and development trade production team.
Q: How is your quality control?
A: We have QA & QC department to make sure qualified products us.
income raw material inspection and first unit sample confirmed by QA before assembling; processing, duration & performance testing carried out by QC before packing by 100%;
Q: What's your payment term?
A:The payment term is30% down payment and 70% balance before shipment.
Q:Can you accept smaller order?
A:Yes, our MOQ is 50pcs without customized color and package.
