Jh1006A Hot Sell Electrical Instruments Contact Loop Resistance Tester Micro Ohm Meter

Product Description

Product overview:

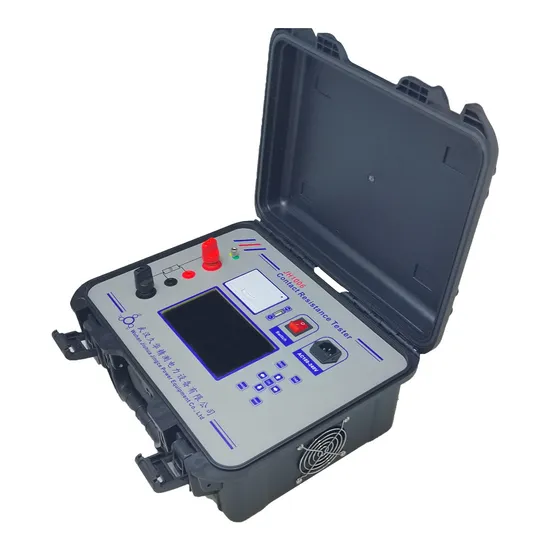

The JH1006A Contact Loop Resistance Tester has operation panel of this instrument adopts an ergonomic design that conforms to operating habits. It adopts high-frequency switching power supply and digital circuit technology, and is suitable for measuring the circuit resistance of switch control equipment. The testing current adopts the DC 200A recommended by the national standard. The circuit resistance can be directly measured under DC 200A, and the test results are displayed on a large LCD TFT color screen, with functions such as data storage, output printing, and time setting. There are 50A, 100A, 150A, and 200A gears for users to choose from; Customized testing time, with a maximum set time of 60S, it is a very stable contact resistance tester with performance exceeding that of imported high current micro ohmmeters. Comply with on-site high-voltage switch maintenance by power and power supply departments and high-voltage switch factory circuit resistance.
Technical parameters:
1.Measurement range: 0-50m Ω
2.Resolution: 0.1 μ Ω
3.Measurement accuracy: ± (reading × 0.5%+1 μ Ω)
4.Test power supply: constant current and voltage limiting, approximately 5.0V
5.Test current: DC 50/100A
6.Test current accuracy: ± 5%
7.Measurement time: fast, 10~60 seconds, continuous testing optional
8.Special testing line: resistance<20m Ω
9.Charging power supply: Input 180V~240VAC, 50Hz/60Hz,
10.Data storage: Store 100 sets of measurement data
11.Working environment: temperature -10~50 ºC, humidity ≤ 90%
12.Host weight: approximately 7kg (excluding cables)
13. Host volume: 420mm × 340mm × 200mm

Model	JH1006A
Measurement range	0-50m Ω
Resolution	0.1 μ Ω
Measurement accuracy	± (reading × 0.5%+1 μ Ω)
Test power supply	constant current and voltage limiting, approximately 5.0V
Test current accuracy	± 5%
Measurement time	10~60 seconds, continuous testing optional
Charging power supply	Input 180V~240VAC, 50Hz/60Hz

FAQ
1. Is your company a sales company or a manufacturer?
Our company is an industrial and trade enterprise, with our own factory and lab, self-produced and self-sold. We were founded in 2013 and have 12 years of production experience, which has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time?
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is in well package with fast shipping.
4. What are the after-sales terms?
We offer free consulting service, 1 year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
6.Is customization supported?
We support customization in language use according to your requirement if the quantity ordered reaches.
