PP/Pes/Hydrophobic PTFE Kleenpack Capsule Filter for Food and Beverage Pharmaceutical

Product Description

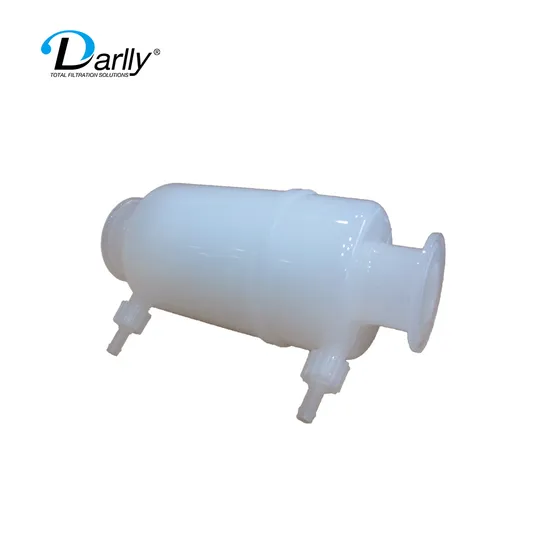

DL761 capsule filter with all polypropylene construction
provides excellent chemical compatibility and available in
PP,PES,PTFE material. It is used for filtration of small to
medium volumes used in production, laboratory and pilot
runs. No adhesives, binders, or surfactants are used in the
manufacturing process of these capsules. They are rinsed
with EDI water to reduce extractables. All the PES and
PTFE capsule filters are 100% integrity tested to ensure
filter performance .
Features And Options:
• High Quality & Economically Priced
• Pharmaceutical Membrane / PP Components
• 100% Integrity Tested
• Rinsed with EDI Water
• UPS Class VI Compliant
Applications:
Buffers and Media
Vaccines
Antibiotics
Fermentation Broths
SVP (Small Volume Parenterals)
Pharmaceuticals
Biologicals
Scale-up Processing
Serums
Water
SPECIFICATIONS:
Filter Media: PP, PES, PTFE, Nylon6
Filter housing: PP
Support Material: PP
Sealing: Thermally Welded
Removal Ratings:
PP: 0.1μ M, 0.22μ M, 0.45μ M, 1μ M, 3μ M, 5μ M, 10μ M, 20μ M, 30μ M, 50μ M
PES: 0.1μ M, 0.22μ M, 0.45μ M
PTFE: 0.1μ M, 0.22μ M, 0.45μ M for liquid, 0.1μ M, 0.22μ M for gas
Nylon6: 0.1μ M, 0.22μ M, 0.45μ M, 0.65μ M, 1μ M
Detailed dimensions and connection style attached.
Operating Conditions:
Maximum Operating Pressure 5.5bar at 22 °C
Maximum Forward Differential Pressure 5.0bar at 22 °C
Maximum Reverse Differential Pressure 5.0bar at 22 °C
Maximum Operating Temperature 80 °C
