XQ6432c Universal Milling Machine Factory Sell Directly

Product Description

Product Description
XQ6432C Universal Milling Machine
1. Finely graduated feeds in all axis, driven by servomotor.
2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process.
3. Rotary table (±45°)is optional accessories.
4. DRO is optional accessories.
5. LED lamp is optional accessories.
6. 300mm worktable can be ordered at special request.

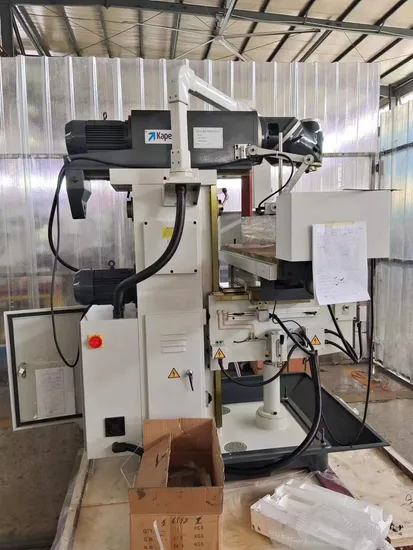

Detailed Photos
Product Parameters

Specification	Unit	XQ6432A	XQ6432C
Table size	mm	1370*320
T-slots (NO./width/pitch)	mm	3/14/80
Max.table travel -X/Y/Z	mm	820/300/400	1000/380/400
Spindle taper		7:24 ISO40
Max rotary angle of table		-
Distance between spindle	mm	65-465
Distance between spindle nose and table surface	mm	250-650
Distance from horizontal spindle center line to arm surface	mm	180
Spindle speed range	r.p.m	(V)11 steps 45-1660; (H)12 steps 35-1500
Arm travel	mm	400
Table feed(X/Y/Z)	mm/min	XY:30-830 Z:23-625
Table rapid speed
Main motor power	kw	2.2 or 3(V) 3(H)
Torque of X/Y/Z axis AC servo mmotor	nm	15
Cooling pump motor power	w	40
Flow of cooling pump	L/M	12
Overall size	mm	1820*1680*1860
Net weight	kg	1900	1950

Certifications
We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.

Packaging & Shipping
standard export packing:
plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet:
1.strong carring capacity
2.Eco-friendly and recyclable
3.Standard export package, fumigation-free
4.Flexible and convenient for transportation

Company Profile
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. Our company is located in the scenic hometown of Mozi who is the famous thinker in ancient China.

It covers an area of about 20000 square meters. Our fixed assets are 20 million RMB. There are 430 workers, including 132 technicians. We are equipped with 18 sets of precision processing machines and 260 sets of testers. Our company is a high tech enterprise for strong technical strength. With business management standardization and perfect sales and after-sales service, we have established the best brand of "YOU RONG XI LI".Our main products include vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, RAM type milling machines and vertical drilling machines with all 30 categories.
In 2003, we attained ISO9001 quality guarantee system certification. With more than 10 years′ history of milling machine production, we have advanced technology and rich managing experience. Our milling machine was ranked the first place in China. We are capable of designing and manufacturing special machine tools which sell well all over country and are exported to the USA, Germany, Britain, Southeast Asia, the Middle East and Africa.Our company insists on "professional services and creating value for customers". We provide high quality products, reasonable prices, satisfactory service and timely delivery. We are welcome all customers from at home and abroad to visit our factory.


FAQ
1. who are we?
We are based in Shandong, China, start from 1999,sell to Domestic Market(50.00%),Western Europe(20.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Southern Europe(2.50%),Central America(2.50%),North America(2.50%),Oceania(2.50%),Africa(2.50%),South America(2.00%),South Asia(0.50%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,machining cener,gantry milling machine,cnc gantry milling machine.
4. why should you buy from us not from other suppliers?
Xili Machine has independent import & export right for self-manufactured products. In 2002, we passed ISO9001 and got CE certification in 2007. it was awarded as the national high-tech enterprises in 2010.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
