Plastic UPVC/PVC/WPC Window Fence-Door Frame Board Ceiling Wall Panel Roof Floor Tile Cable Trunking Profile Extrusion Manufacturing Production Machine Line

Product Description

Product Description
Plastic wood(WPC)- PVC-PE Window Profile/Ceiling board/Edge banding/Door panel/ ProfileProduction Extrusion Machine
Through market combination and our technology innovation, Midtech pleased to provide
Energy saving (15% down),
High standard (Bimetallic & PLC Intelligence),
Reliable quality (vertical gearbox by SKF bearing)
Extruder and whole set PVC profile, soft-hard co-extrusion profile, foam profile extrusion, multi layer co-extrusion, PE+ wood (WPC) solutions Detailed Photos
Plastic pipe machine workshop:
Plastic profile machine workshop:

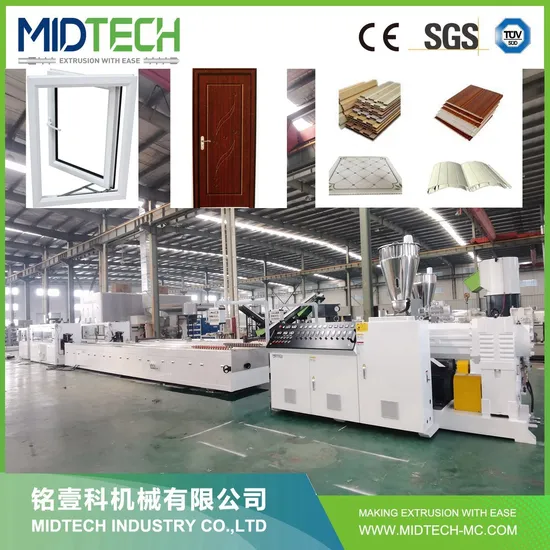

PVC window profile machine :
Product Parameters
Technical data

Model/data	Max width	Extruder model	Motor power	Max capacity
MT180	180mm	MT51/105	22kw	120kg/h
MT240	300mm	MT65/132	37kw	260kg/h
MT600	600mm	MT80/156	55kw	400kg/h
MT800	800mm	MT92/188	90/100kw	650kg/h

Work flow and detailed information:

Feeder	• To feed material into extruder;
Extruder	• High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile
Calibration table	• Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Hot stamping machine	• Decorative pattern and film protection of product surface

Our Advantages
Why choose us
♦ Specified screw design and material application for high percentage CaCO3
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines: 18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru... Company Profile
If You Have Any Questions ,Please Contact Us Any Time, We Are Here For Your Service!!!
