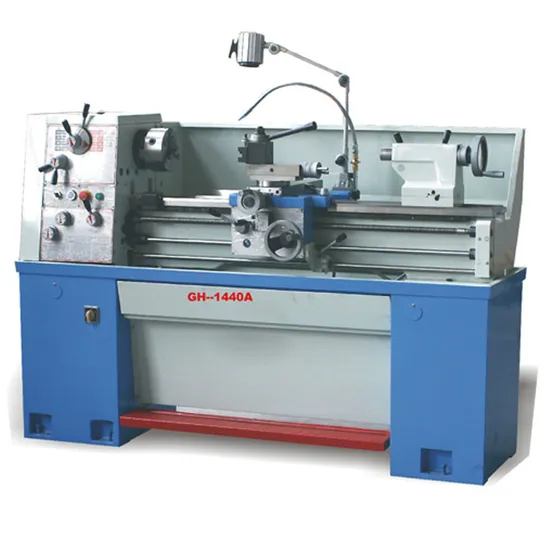

Horizontal Gap-Bed Universal Lathe (GH-1440A)
| US$3,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GH1440A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Color
White and Blue
Size
2020 900 1560
Weight
880
Model
Gh-1440A
Swing Over Bed
356mm
Spindle Bore
38mm
Distance Between Column
1000mm
Brand
Uni-Tech China Brand
Motor Power
1.5/2.4kw(3HP)
Name
Lathe Machine
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
unitech
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
Horizontal Gap-Bed Universal Lathe (GH-1440A)Hardened and ground bed ways.
16 speeds all geared head stock.
3HP(2.4kW)three phase motor.
Foot brake giving rapid braking.
Emergency stop button equipped on the front of headstock.
Jog button for easy gear engagement and inching spindle.
Open type chip pan easily to remove chips.
Extra safety switch shuts down machine automatically for changing belt or gear for threadingcutting.
Product Parameters
| @ Specification | |||
| ITEMS | GH-1440A | ||
| General capacity | Max. swing over bed | mm | φ 356(14" ) |
| Max. swing over slide | mm | φ 220(8-5/8" ) | |
| Max. swing in gap | mm | φ 506(20" ) | |
| Width of bed | mm | 206(8-1/8" ) | |
| Max. Length of workpiece | mm | 1000/750(40" /30" ) | |
| Main spindle | Taper of spindle bore | M. T. No. 5 | |
| Diameter of spindle hole | mm | φ 38(1-1/2" ) | |
| Number of spindle speeds | 16, 2 ranges | ||
| Range of spindle speeds | 45-1800RPM | ||
| Spindle nose | D1-4 | ||
| Threading & Feeding | Metric pitch threads | mm | 0.45-7.5(22kinds) |
| Whit-worth threads | TPI | 4-112(44kinds) | |
| Range of longitudinal feeds | mm | 0.043-0.653(0.0012" -0.0294" rev) | |
| Range of cross feeds | mm | 0.015-0.220(0.0003" -0.01" rev) | |
| Leadscrew | Diameter of leadscrew | mm | φ 22(7/8" ) |
| Pitch threads of leadscrew | mm | 4(8T. P. I) | |
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4" ) |
| Diameter of tailstock quill | mm | φ 45(1-25/32" ) | |
| Taper hole of tailstock quill | M. T. No. 3 | ||
| Power | Power of main motor | 1.5/2.4(3HP) | |
| Coolant pump motor power | kW | 0.04(0.055HP) | |
| Overall dimensions (L× W× H) | mm | 1920× 740× 1180 | |
| Packing size of lathe (L× W× H) | mm | 2020× 900× 1560 | |
| Net weight | kg | 750(1650 lbs) | |
| Gross weight | kg | 880(1950 lbs) | |
