Automatic Bidirectional Thin Paperboard Grooving Machine with High Efficiency

Product Description

Description of machine:

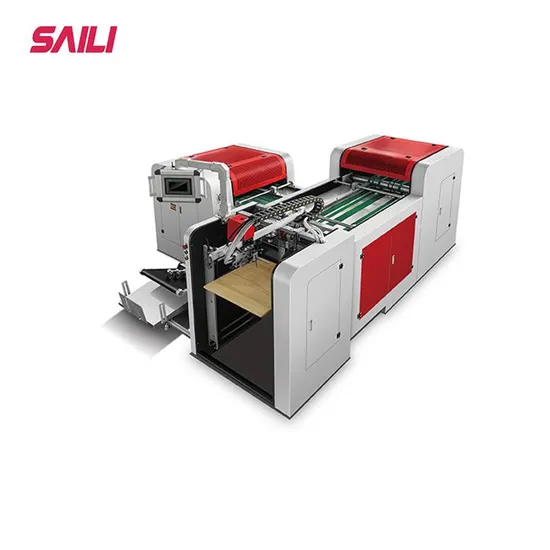

SLQ-600 paperboard grooving machine it is new technology with new developed on basic of much experience of grooving technology , it is specially making V shape on thin paperboard,film paperboard It make V shape on specially paperboard in one time, help user to save man power, increase production capacity, high precision, and meanwhile delivery the grooving waste to machine size automatically, and collecting the final product automatically. It always used for making different package box, such as lid&base boxes, rigid box, gift box, mobile phone boxes, etc.

Technical Parameters:

Model:	SLQ-600
Thickness	1.0-3.0mm
Material size of 1 st step	Length:100-450mm,width:100-600mm
Material size of 2 nd step	Length:100-600mm,width:100-600mm
Working Speed:	130pcs/min(material size 200x200mm)
Normal grooving accuracy	±0.1mm
Grooving angle	90º-130ºadjust
Numbers of knife holder	first two rows of knives, second one row of knives
Max grooving lines of 1 st step	8 grooving lines
Max grooving lines of 2 nd step	4 grooving lines
Feeding type	feida feeding
Power	6.5 KW

Machine details
APPLICATED SITUATIONS:
Company Profile
FAQ
1.What is Saili company machine warranty?
----1 year including spares ( spares that are not damaged by humans consumables are not included)
2.Does your machine with CE certificate?
----Yes.We have CE ,ISO9001 .
3.What is the production time while placing order?
---- Within 7-30 workdays.
4.Do you have stock product to sell?
----Normally we do,it depends on which models you inquired .
5.Can Saili company handle shipping for customers?
----Yes.(Please provide us your requested sea port and we can check the shipping charge from logistic company and arrange shipping for you.)
6.Does the packing strong?
----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
