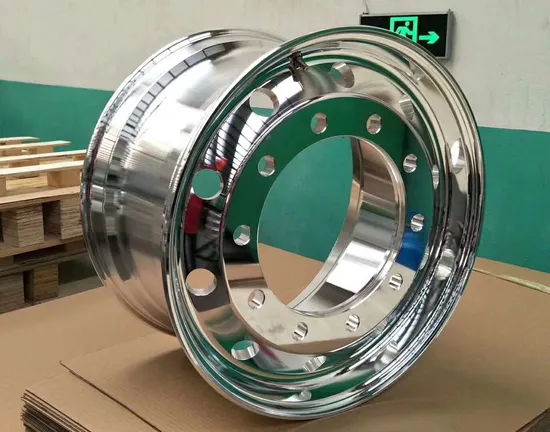

High Quality Aluminum Wheel 22.5X14, Truck Wheel Rim

High Quality Aluminum Wheel 22.5X14, Truck Wheel Rim

US$130.00-150.00 200 Boxes (MOQ)

Basic Info.

Model NO.
22.5x14
Drive Wheel
RWD
Wheel Hub Diameter
21-24"
Wheel Accessories
Wheel Cover
Spoke Type
Equal Diameter Spoke
Certification
ISO, TUV, DOT
Hole No
10
Hole Dia
26/32
Hole Type
1X45/Sr22
PCD
335/285/285.75
C.B.D
281/221/220.5
Offset
0/120/135
Disc Thickness
22/24
Pack
Bag/Pallet
Transport Package
Bag or Pallet
Specification
22.5X14
Trademark
SUNTECHMAX
Origin
China
HS Code
87087050
Production Capacity
500000PCS/Year

Product Description

1.WHEEL DETAILS
QINGDAO SUNTEK INTERNATIONAL TRADING CO,.LTD
No. SIZE LOAD CAP PRESSUR E VALVE DISC THICK HOLE TYPE HOLE DIA VENT DIA P.C.D
(mm)		 C.B.D
(mm)		 OFFSET
(mm)
1 17.5x6.00 2200kg 760kpa TR554D 20.4 6 SR22 32.5 40 222.25 164 135
2 17.5x6.00 2200kg 760kpa TR554D 20.4 10 C1 26.5 40 225 176 135
3 17.5x6.00 2200kg 760kpa TR554D 20.4 5 SR22 32.5 40 203.2 146 135
4 17.5x6.75 2500kg 780kpa TR554D 21.0 6 SR22 32.5 40 222.25 164 141.0
5 17.5x6.75 2500kg 780kpa TR554D 21.0 10 C1 26.5 40 225 176 141.0
6 17.5x6.75 2500kg 780kpa TR554D 21.0 6 C1 21.5 40 205 161 141.0
7 19.5x6.75 2750kg 780kpa TR554D 22 8 SR22 32.5 50 275 214 142
8 19.5x6.75 2750kg 780kpa TR554D 22 8 C1 26.5 50 275 221 142
9 19.5x6.75 2750kg 780kpa TR554D 22 8 C1 26.5 50 275 221 144
10 19.5x6.75 2750kg 780kpa TR554D 22 8 C1 24 50 275 221 142
11 19.5x6.75 2750kg 780kpa TR554D 22 6 SR22 32.5 50 222.25 164 142
12 19.5x6.75 2750kg 780kpa TR554D 22 8 SR22 32.5 50 285 221 142
13 19.5x6.75 2750kg 780kpa TR554D 22 8 SR22 32.5 50 285 221 144
14 19.5x7.50 3000kg 760kpa TR554D 20.0 8 C1 26.5 50 275 221 155.0
15 19.5x7.50 3000kg 760kpa TR554D 20.0 8 C1 24.5 50 275 221 155.0
16 19.5x7.50 3000kg 760kpa TR554D 20.0 10 C1 26.5 50 285.75 220 155.0
17 19.5x7.50 3000kg 760kpa TR554D 20.0 8 SR22 32.5 50 275 214 155.0
18 19.5x7.50 3000kg 760kpa TR554D 20.0 8 C1 26.5 50 275 214 155.0
19 19.5x8.25 3150kg 830kpa TR554D 21 10 C1 26.5 50 285.75 220 167
20 19.5x8.25 3150kg 830kpa TR554D 21 8 C1 26.5 50 275 221 167
21 22.5x6.75 3200kg 790kpa 70MS-7 21.0 8 SR22 32.5 52 275 214 151.0
22 22.5x6.75 3200kg 790kpa 70MS-7 21.0 8 C1 26.5 52 275 221 151.0
23 22.5x7.50 3350kg 830kpa 70MS-7 22 10 C1 32.5 52 335 281 161.5
24 22.5x7.50 3350kg 830kpa 70MS-7 22 10 C1 26.5 52 335 281 161.5
25 22.5x7.50 3350kg 830kpa 70MS-7 22 10 C1 26.5 52 335 281 162
26 22.5x7.50 3350kg 830kpa 70MS-7 22 8 C1 26.5 52 275 221 161.5
27 22.5x7.50 3350kg 830kpa 70MS-7 22 8 C1 24.5 52 275 221 161.5
28 22.5x7.50 3350kg 830kpa 70MS-7 22 8 SR22 32.5 52 275 214 161.5
29 22.5x7.50 3350kg 830kpa 70MS-7 22 10 C1 26.5 52 285.75 220 161.5
30 22.5x7.50 3350kg 830kpa 70MS-7 22 8 SR22 32.5 52 285 221 161.5
31 22.5x7.50 3350kg 830kpa 70MS-7 22 8 SR22 32.5 52 285 221 162
32 22.5x7.50 3452kg 900kpa TR543D 22 8 C1 24.5 50 275 221 160
33 22.5x7.50 3452kg 900kpa TR543D 22 8 C1 30 50 275 221 160
34 22.5x7.50 3452kg 900kpa TR543D 22 8 C1 32 50 275 221 160
35 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 32.5 52 335 281 167.0
36 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 SR22 32.5 52 335 281 167.0
37 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 SR22 32.5 60 335 281 167.0
38 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 52 335 281 167.0
39 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 60 335 281 167.0
40 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 52 335 281 165.0
41 22.5x8.25 3650kg 830kpa 70MS-7 21.5 10 C1 26.5 60 335 281 167.0
42 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 52 285.75 220 167.0
43 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 60 285.75 220 167.0
44 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 285.75 220 167.0
45 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 75x60 285.75 220 167.0
46 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 26.5 285.75 220 167.0
47 22.5x8.25 3550kg 830kpa TR555D 21.0 10 C1 26.5 61 285.75 220 167.0
48 22.5x8.25 3650kg 952kpa 70MS-7 22.5 10 C1 26.5/32.5 61 335 281 165.5
49 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 SR22 32.5 52 285.75 222 167.0
50 22.5x8.25 3650kg 830kpa TR542/40MS 25 10 C1 26.5 40 335 281 ET71.5
51 22.5x8.25 3650kg 830kpa 70MS-7 24.5 8 SR22 32.5 52 285 221 167.0
52 22.5x8.25 3650kg 830kpa 70MS-7 24.5 8 SR22 32.5 52 285 221 165.0
53 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 C1 32.5 52 285.75 220 167.0
54 22.5x8.25 3650kg 830kpa 70MS-7 24.5 10 SR22 32.5 52 285.75 221 167.0
55 22.5x9.00 4125kg 935kpa 70MS-7 24 10 C1 32.5 52 335 281 176
56 22.5x9.00 4125kg 935kpa 70MS-7 24 10 SR22 32.5 52 335 281 176
57 22.5x9.00 4125kg 935kpa 70MS-7 24 10 C1 26.5 52 335 281 176
58 22.5x9.00 4125kg 935kpa 70MS-7 22 10 C1 26.5 52 335 281 176
59 22.5x9.00 4125kg 935kpa 70MS-7 24 10 SR18 26.5 52 335 281 176
60 22.5x9.00 4000kg 935kpa 70MS-7 22.5 10 C1 26.5 58 335 281 175
61 22.5x9.00 4125kg 935kpa 70MS-7 24 10 C1 24 52 335 281 176
62 22.5x9.00 4125kg 935kpa 70MS-7 24 10 C1 26.5 52 285.75 220 176
63 22.5x9.00 4000kg 925kpa TR542 27 10 C1 32.5 40 335 281 ET79
64 22.5x9.00 4000kg 925kpa TR542 27 10 SR22 32.5 40 335 281 ET79
65 22.5x9.00 4000kg 925kpa TR542 27 10 C1 26.5 40 335 281 ET79
66 22.5x9.00 4000kg 925kpa TR542 22 10 C1 24 40 335 281 ET79
67 22.5x9.00 4000kg 925kpa TR542 27 10 SR22 32.5 40 285.75 221 ET79
68 22.5x9.00 4000kg 925kpa TR542 27 10 C1 26.5 40 285.75 220 ET79
69 22.5x9.00 4125kg 978kpa 70MS-7 22.5 10 C1 26.5/32.5 61 335 281 175.5
70 22.5x9.00 4125kg 930 70MS-7 24 10 C1 26.5 58 335 281 176.5
71 22.5x11.75 4500kg 870kpa TR543E 23 10 C1 32.5 40 335 281 0
72 22.5x11.75 4500kg 870kpa TR542 25.5 10 C1 32.5 40 335 281 ET120
73 22.5x11.75 4500kg 870kpa V3-30 23 10 C1 26.5 40 335 281 0
74 22.5x11.75 4500kg 870kpa TR543E 23 10 C1 26.5 40 335 281 0
75 22.5x11.75 4500kg 870kpa TR542 25.5 10 C1 26.5 42 335 281 ET120
76 22.5x11.75 4500kg 870kpa TR542 25.5 10 C1 26.5 42 335 281 ET120
77 22.5x11.75 4500kg 870kpa TR543E 23 10 C1 26.5 40 285.75 220 0
78 22.5x11.75 4500kg 870kpa TR542 25.5 10 C1 26.5 42 285.75 220 ET120
79 22.5x11.75 4500kg 870kpa TR542 25.5 10 SR22 32.5 42 285.75 221 ET120
80 22.5x13.00 5500kg 952kpa TR543E 28.0 10 C1 32.5 42 335 281 14
81 22.5x13.00 5500kg 952kpa TR543E 28.0 10 C1 26.5 42 335 281 14
82 22.5x13.00 5600kg 952kpa TR542 28.0 10 C1 26.5 42 335 281 14
83 22.5x14.00 5800kg 960kpa TR543E 31 10 C1 32.5 40 335 281 0
84 22.5x14.00 5800kg 960kpa TR543E 31 10 C1 26.5 40 335 281 0
85 22.5x14.00(
)		 5800kg 960kpa TR543E 31 10 C1 26.5 40 335 281 0
86 22.5x14.00 5800kg 960kpa TR543E 31 10 C1 26.5 40 285.75 220 0
87 24.5x8.25 3750kg 935kpa TR554D 22 8 C1 26.5 60 275 221 167.2
88 24.5x8.25 3750kg 935kpa TR554D 22 10 C1 26.5 60 285.75 220 167.2
89 24.5x8.25 3750kg 935kpa TR554D 22 10 SR22 32.5 60 285.75 222 167.2
90 24.5x8.25 3750kg 935kpa TR554D 22 10 C1 26.5 60 285.75 221 167.2

(mm)		 kpa Kn.m
()		 Kg.f
()		 Kg
1 17.5X6.00 394 760 1159 4400 2200
2 17.5X6.75 394 780 1335 5000 2500
3 19.5X6.75 402 780 1490 5500 2750
4 19.5X7.5 419 780 1734 6000 3000
5 19.5X8.25 425 830 1886 6300 3150
6 22.5X6.75 476 790 2001 6400 3200
7 22.5X7.5 491 830 2185 6700 3350
8 22.5X8.25 504 830 2440 7300 3650
9 22.5X8.25-QL 504 830 2373 7100 3550
10 22.5X9.00 521 935 2880 8250 4125
11 22.5X9.00 521 925 2396 8000 4000
12 22.5X9.00-QL 521 935 2880 7100 4125
13 22.5X11.75-P0 515 870 2190 9000 4500
14 22.5X11.75-P120 515 870 2919 9000 4500
15 22.5X13.00 515 952 2754 11000 5500
16 22.5X14.00 526 960 2883 11600 5800
17 24.5X8.25

2.PRODUCTION PROCESS 3.LOADING PHOTOS 4.OUR SERVICE
We are not only product and sell Truck Wheels, but we are also selling our service.
One-stop assembled service of wheels is provided.
Basis service:
1. Quick response within 24hours.
2. Sample afforded. Free sample of steel wheel and the complete wheels sample cost will be returned after order. The freight cost collected by customers.
3. OEM & ODM order is accepted.
4. Short production lead time and delivery.
5. Quality inspecting 100%.
6. Stable packaged by the special tool can keep wheels are safe on long loading.
Customized services:
1. You may send the drawing to us, the best price will be offered soon.
2. You may send the sample to us, the drawing will be provided soon. The best price will be offered after the drawing confirmed.
3. Customer's logo marking provided by professional software. The more information you may consult with us.
4. The customer's package accepted. After-sale service:
All-wheel have a years quality guarantee, if any quality problem after clients received the cargo, you may contact with us freely. We will give solutions to you soon. And we never let it happen next time. 5.FAQ
Q1. What are your terms of payment?
A: T/T 30% in advance as a deposit to produce, and 70% against B/L copy. Or by irrevocable LC at sight.
Q2. How about your delivery time?
Normally, it takes less than 30days after receiving advance payment. The specific delivery time depends on the items and the quantity of your order, please consult our sales.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. The main engineer in our Technical department has more than 10 years experience
Q4. What is your sample policy?
A: We can supply the sample if we have ready in stock, but the customers have to pay the sample cost and the courier cost. Special Customization needs to confirm with our salesman.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% inspection before delivery, and all the function meets the target market regulations.
Q6: How do you make our business long-term and a good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
