Fiber-Reinforced Plastics Chemical Storage Tank Diameter 200 mm X 1200 mm Height Horizontal GRP/FRP Tank

Product Description

Fiberglass Chemical Storage Tanks China Manufacturers Chemical Resistant Horizontal FRP Storage Tank

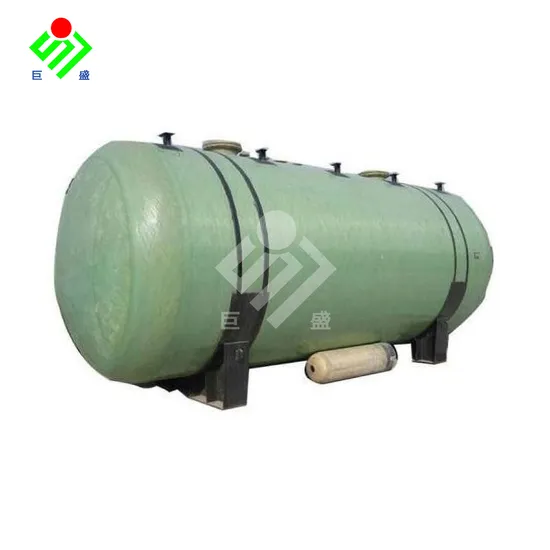

Horizontal FRP Storage Tank
Horizontal FRP tank, also called horizontal FRP vessel, is a device composed by seepage-resistant and anti-corrosive inner layer, firm structural layer, anti-aging outer layer, heads, nozzles, and saddle supports. FRP (Fiberglass Reinforced Plastic),
its raw material, is a special kind of plastic which has been reinforced with fiberglass, similar to the way that rebar strengthens concrete. Horizontal FRP tank is a perfect choice when you are in need for storage tank but have a vertical height limitation. By using filament winding method, the material of horizontal FRP tank can be reinforced to adjust its physicochemical ability and meet different requirements.
Horizontal FRP tanks, also known as horizontal FRP vessels or horizontal GRP tanks, are a kind of horizontally placed FRP tanks having cambers at both ends and saddles in the middle part.The wall thickness of horizontal FRP tanks is 30% - 40% higher than that of vertical FRP tanks. Filament cross winding is adopted for tank shell fabrication, thereby offering a higher shear strength. In places where saddle supports are placed, partially reinforced shall be provided in the radius direction. Horizontal FRP tanks are applicable to be placed indoors with height restrictions or on the top of buildings due to their lower height, simple operation, and stable gravity center.Product Parameters

HORIZONTAL FRP STORAGE TANK SPECIFICATIONS
Product Name	Horizontal FRP Storage Tank
Keywords	FRP Storage Tank
Feature	High Chemical Corrosion Resistant
Weight (KG)	500 kg
Working Temperature(Celsius)	29-350 Celsius
Tank Type	Horizontal
Tank Color	Customized Colors
Tank Thickness	5mm or Customized
Tank Material	FRP GRP Fiberglass
Tank Surface Treatment	Smooth
Key Selling Points	Long Service Life
Storage Medium	Chemicals Water Oil Fuel
Max Working Pressure(MPa)	<10 MPa
MOQ	1 piece

Nominal volume (m3)	Actual volume (m3)	Number of saddle supports	Main container (mm)						Thickness (mm)	Weight (kg)
			Dia.	L1	L2	a	b	c
1	1.25	2	1000	1460	960	500	25	50	10	280
2	2.06	2	1000	1990	1400	500	25	50	12	295
3	2.93	2	1000	2200	1700	500	25	50	12	297
4	4.07	2	1200	2280	1680	500	25	80	15	480
5	5.03	3	1400	2770	2070	500	25	80	18	650
6	6.3	2	1600	3270	2470	500	25	80	18	750
7	7.2	3	1600	3770	2970	500	25	80	18	780
8	8.64	3	1800	4270	3370	500	25	80	20	840
9	9.52	3	1800	4760	3860	500	40	80	20	920
10	10.17	3	1800	5260	4360	500	40	80	20	1060
16	15.17	3	1800	6120	5220	500	40	80	20	1500
20	20.26	4	2200	6500	5400	500	50	100	25	2273
25	24.83	4	2200	6800	5700	500	50	100	30	2718
30	32	4	2300	7900	6750	500	50	100	32	4132
40	40	3	2600	8310	7010	500	50	100	35	5086
50	50.06	4	2800	9870	8470	500	50	100	40	6727
63	60.6	3	2800	9990	8590	500	50	100	45	8797
70	71.36	4	3000	10460	8960	500	50	100	48	10012
80	80	4	3000	11880	10380	600	50	100	50	11463
100	99.96	4	3000	14550	13050	600	50	100	50	13863
120	120.1	4	3200	15400	13800	600	50	100	55	16971

Structure
Overall Diagram
Large Storage Capacity
Suitable for industries with large storage demands.Great Shear Resistance
Filament cross winding is adopted for tank shell fabrication, which makes the tank shall have great shear resistance.Free from Wind Load Considerations
As the horizontal FRP tank has a better stability than the vertical one, therefore, the influence of wind load is not taken into consideration.Liquid Column Static Pressure Can be Ignored
In most cases, the height of liquid column inside the horizontal FRP tanks is relatively low, according to GB 150 Pressure Vessels, when the liquid column static pressure is 5% lower than the design pressure, the liquid column static pressure can be ignored.Structural Ribs are Provided
It is designed to provide effective support for the overall structure and deliver great stability.
