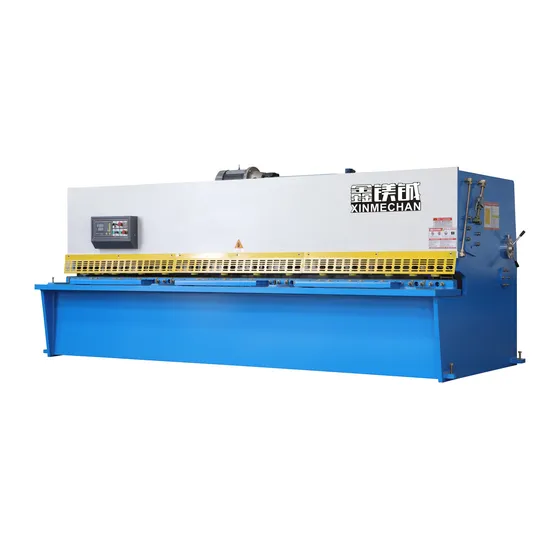

Hydraulic Sheet Metal Shearing Machinery Shear

Product Description

Characteristic of shearing machine1. The overall frame structure is welded in whole. The internal stress is eliminated by vibration, making its structure more robust and reliable. The oil route cable is built-in, the appearance is beautiful, tidy.
2. The upper and lower cut gaps do not require manual adjustment, adopt utility model, ensuring good cutting gap when cutting thin or thick plate.
3. The upper knife holder is active and adjustable as a whole, thus extending the service life.
4. The use of hydraulic backhaul design can achieve point cutting angle, but also avoid nitrogen leakage, and shearing vibration and noise, ensure that the machine runs smooth and quiet, without the need to fix the foundation.
5. The rear retainer can be easily removed and suspended in the knife holder, providing simple and convenient conditions for cutting very long plate materials.
6. The worktable surface and the body are welded and processed in a whole. And the widen countertop and long right-angle arm and the height of the humanized design allow the operator to complete the work comfortably and efficiently.
7. All hydraulic oil pipes are connected with bite type tube fittings/ferrules, avoiding traditional welding oil leakage and inconvenience maintenance and other problems.
Specification sheet

Model	Cutting thickness (mm)	Cutting width	Stroke/ Number (times/min)	Travel of backgauge (mm)	Rake angle (.)	Throat Depth (mm)	Main Motor (kw)	Overall Dimensions L×W×H(mm)
6×2500	6	2500	10-25	20-600	0.5-1.5	100	7.5	3030×2075×1920
6×3200	6	3200	10-25	20-600	0.5-1.5	100	7.5	3730×3075×1920
6×4000	6	4000	10-25	20-600	0.5-1.5	100	7.5	4530×2075×2080
6×5000	6	5000	8-20	20-800	0.5-1.5	100	7.5	5530×2075×2310
6×6000	6	6000	8-20	20-800	0.5-1.5	100	11	6530×2075×2310
7×7000	7	7000	6-15	20-800	0.5-1.5	100	11	7530×2075×2830
8×2500	8	2500	10-25	20-600	0.5-1.5	100	11	3040×2075×1920
8×3200	8	3200	10-25	20-600	0.5-1.5	100	11	4080×2075×1920
12×2500	12	2500	6-20	20-800	0.5-2	100	18.5	3110×2575×2210
12×3200	12	3200	6-20	20-800	0.5-2	100	18.5	3810×2575×2420
12×4000	12	4000	6-20	20-800	0.5-2	100	18.5	4610×2575×2530
13×8000	13	8000	4-15	20-800	0.5-2	500	30×2	8600×2900×3100
16×2500	16	2500	5-15	20-800	0.5-2.5	100	18.5	3130×2655×2200
16×4000	16	4000	5-15	20-800	0.5-2.5	100	18.5	4630×2655×2570
20×2500	20	2500	5-15	30-800	0.5-3	100	22	3160×2855×2300
20×4000	20	4000	4-15	30-800	0.5-3	100	37	4660×2855×2520
25×2500	25	2500	4-15	40-800	0.5-3.5	100	37	3160×2900×2700
