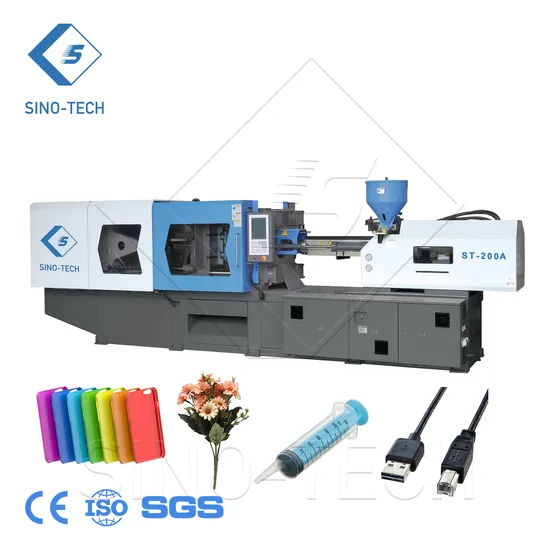

Insulin Syringe IV Set Making Machine Injection Molding Machine

Product Description

Insulin Syringe IV Set Making Machine Injection Molding Machine
Product Description
SINO-TECH ST-90SElll injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-90SElll with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		90SElll
Screw diameter	mm	30	35	40
Theoretical shot volume	cc	124	168	220
Shot weight (PS)	g	113	153	200
Shot weight (PS)	oz	4.0	5.4	7.1
Length/Diameter ratio	L/D	24	20.6	18
Injection pressure	MPa	254	186	143
Injection rate	cm³/sec	83	113	147
Injection stroke	mm	175
Max. Screw speed	rpm	237
Plasticizing capacity (PS)	g/s	11.2	12.4	18.2
Injection unit force	Ton	5.7
Carriage stroke	mm	230
Clamping force	Ton	90
Max. daylight	mm	740
Clamping stroke	mm	360
Distance btwn. Tie bars	mm	360*360
Min mould dimension	mm	250*250
Mould thickness range	mm	120-380
Ejector force	Ton	4.1
Ejector stroke	mm	100
No. of ejector pins	unit	5
Max. motor power	kW	13.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	72
No. of heater zones	unit	3+1+1
Heater input power	kW	7.41
Ultimate capacity	kw	21.81
Current	A	29.8
Net weight	Ton	3.27
Oil filling capacity	L	200

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
