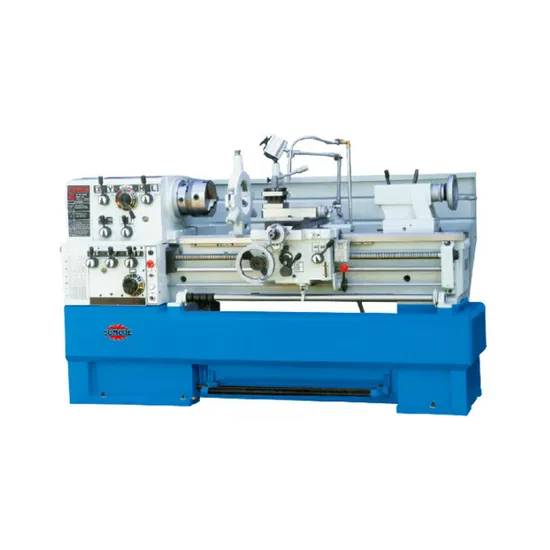

Sumore Dmtg CD6140A (not used) Horizontal Heavy Duty Lathe 410mm*1500mm in Good Condition

Product Description

Product Description
SUMore DMTG CD6140A (not used) horizontal heavy duty lathe 410mm*1500mm in good condition Factory price horizantal manual metal lathe machines for metal work with CE standard Sumore factory Cheap Price High performance 410/460*1M/1.5M/2M Horizontal Heavy Duty Metal Engine Lathe Machine C6241 C6246 Cm6241 CD6241 Cq6240 C6251 C6266 New!!! SP2114 6241 6242 6241 6236 Universal drehmaschinen horizontal cheap lathe machine price SUMORE machine SP2114-II/-I C6246 metal heavy duty manual horizontal precision lathe machine torno price Metal manual Conventional Center Gap Bed Lathe Machine universal metal horizontal gap bed lathe machine
China Heavy Duty Engine Lathe Machine with Big Bore distributor of product in philipines of horizontal lathe machine price
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
Europe South America best selling 1/1.5/2m torno mecnico China engine bench lathe machine for sale 58/82mm bore SP2114 Sumore brand high quality 460x2000mm 82mm bore China heavy duty engine lathe machine for sale
Top 1 quality !! Heavy Duty Lathe Machines // China Engine Lathe with Big Bore and Large Diameter SP2114
Quick Detail: Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500/2000mm
Swing over bed: 410/460mm
Swing over gap: 640/690mm
Spindle bore: 58/82mm
Description:
SP2114 lathe machine is with tool post size 25x25mm, the spindle speed could be 12 steps or variable speed. It belongs to one of the most economic horizontal lathe machine for work piece length 2000mm. The main features / advantages are as below:
Vertical and horizontal feed adopts interlocking mechanism and considerable safety design. The spindle bore is supported with precision roller bearings Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. Carriage rapid feed with clutch is available. Larger spindle bore 82mm is available. Easy operating speed change levers.
Product Parameters

Model	SP2114-I SP2114-II
Swing over bed	410mm(16 ) 460mm(18 )
Swing over cross slide	224mm(8-13/16 ) 274mm(10-3/4 )
Swing in gap:	640mm(25-1/8 ) 690mm(27-1/8 )
Length of gap	155mm(6-1/8 )
Max. length of workpiece	1000mm(40")/1500mm(60")/2000mm(80")
Bed width	300mm(11-13/16 )
Spindle nose:	D1-6
Spindle bore	58mm(2-1/4 )
Taper of spindle bore	NO.6Morse
Range of spindle speed	12changes25-2000r/min
Max. travel of compound rest	120mm(4-3/4 )
Max. travel of cross slide	290mm(11-3/8 )
Leadscrew pitch	6mm
Max. section of tool	25mm×25mm(1×1 )
Longitudinal feeds range	0.031-1.7mm/rev (0.0011 -0.0633 /rev)
Cross feeds range	0.014-0.784mm (0.00033 -0.01873 )
Metric threads range	41kinds 0.1-14mm
Inch threads range	60kinds 2-112T.P.I
Diametrical pitches range	50kinds 4-112D.P.
Module pitches range	34kinds 0.1-7M.P.
Dia. of tailstock sleeve	60mm(2-5/16 )
Travel of tailstock sleeve	120mm(4-3/4 )
Morse taper of tailstock sleeve	NO. 4 Morse
Power of main motor	40KW
Power of coolant pump	0.1KW
Overall dimension(LXWXH)		SP2114-I 2170/2720/3320x1040x1340mm SP2114-II 2170/2720/3320x1040x1370mm
Packing size		2250/2800/3400x1120x1730mm
Gross weight			SP2114-I 1980/2320/2450kgs SP2114-II 2045/2385/2515kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE,SGS,Soncap, saso . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
