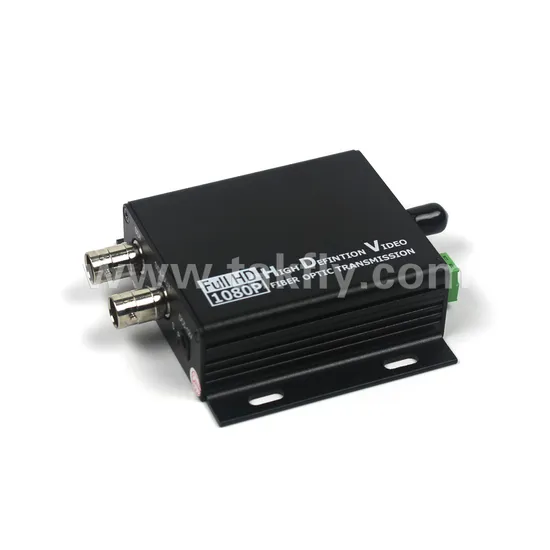

2CH 1080P Resolution Video Fiber Optic Transceiver
Basic Info.
Model NO.
DF-8V-1080P
Certification
ISO
Condition
New
Product Name
8 CH 1080P Resolution Video Fiber Transceiver
Signal to Noise Ratio
>60dB
Wavelength
1310nm&1470nm-1610nm
Fiber Type
50/125um,62.5/125,9/125um
Working Power Supply
110V~240V AC Adaptive
Working Temperature
-0~60
Storage Temperature
-40~85
Channel Physical Interface
BNC
Color for Converter
Black,Silver or Customised
Place of Origin
Guangdong,Shenzhen
Transport Package
Carton
Specification
ISO
Trademark
DF
Origin
Shenzhen, China
Production Capacity
20, 000/Week
Product Description
2CH 1080P Resolution Video Fiber Optic TransceiverProduct characteristics:
1. Advanced lightning protection design,support 5.7KV lightning protection;
2. Industrial design, SMT technology;
3. Digital optical fiber transmission platform,multi service platform with flexible configuration;
4. Provide desktop plug-in frame, concentratedin 2 ways;
5. Independent intellectual property rights oflarge scale integrated circuit core;
6. Single fiber transmission,Optional 20KM, 40KM, 60KM, 80KM,100KM, 120KM long distance transmission.
7. Support 30 million standard video and1280X720P/30Hz and1280PX960P/30Hz and 1280X 720P/50Hz and 1920X1080P/30HZ resolution pixel camera, analog coaxial HDvideo, studio grade transmission quality.
8. Uncompressed video transmission real-timetransmission, to guarantee the best effect;
Technical Parameter:
| Video parameters | Video input and output impedance | 75Ω(non-equilibrium) |
| Standard video input / output voltage | 1.0Vp-p Type | |
| Support camera pixels | 30million,100million,130million,200 million | |
| Video pixel | Standard clear video 1280(H)* 720(V)/30Hz 1280(H)* 720(V)/50Hz 1280(H)* 960(V)/30Hz 1920(H)* 1080(V)/30Hz | |
| Differential gain(10%-90% APL) | <±1% Type | |
| Differential phase (10%-90% APL) | <±1% Type | |
| Signal to noise ratio | >60dB(8Bit) | |
| Channel physical interface | BNC | |
| optical parameters | wavelength | 1310nm&1470nm-1610nm |
| Fiber type | 50/125umultimode,62.5/125umultimode,9/125usingle mode | |
| optical output power | -3~-9dBm | |
| Receiver sensitivity | -26dBm | |
| Optical Connectors | FC,ST,SC | |
| General parameters | Working power supply | 110V~240V AC adaptive |
| Operation Humidity | 0~95% | |
| working temperature | -0~60 | |
| storage temperature | -40~85 |
Ordering Information:
| Product | Description | Company | Product model |
| 2ChVideo Optical Transmitter | 2ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI | pair | DF-2V-1080P |
| 2 ChVideo 1Ch Reverse Data Optical transmitter | 2ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI ,support 1Ch Reverse Data | pair | DF-2V1D-1080P |
Any question about this item, please leave me an inquiry or contact me directly.
