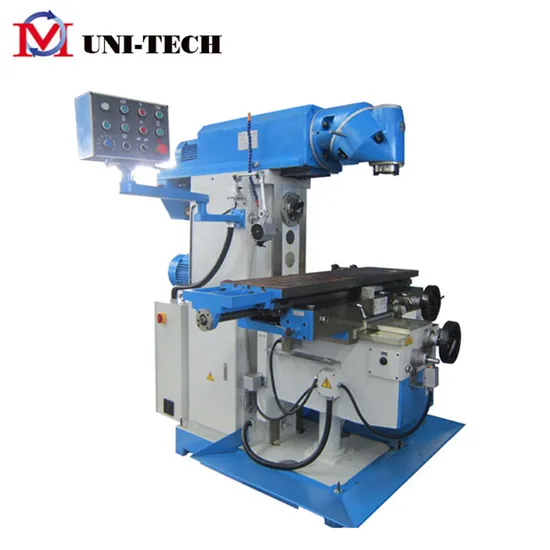

China High Speed Universal Swivel Head RAM Knee Type Horizontal and Vertical Milling Machine
| US$7,800.00-12,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6436
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Universal Milling Machine
Table Size
1325X360/1600X360mm
Spindle Table
ISO50
Arm Travel
550mm
Spindle Speed Range
12steps
Main Motor Power
5.5kw
T-Slots(No./Width/Pitch)
3/18/80mm
Overall Size
1800×2100×2000mm
Net Weight
2685kgs
Table Travel (X/Y/Z)
750/320/460mm
Table Feed(X/Y/Z)
30~750/20~500/15~375mm/Min
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8459590000
Production Capacity
200sets/Month
Product Description
China high speed high precision Universal Swivel Head Ram knee type horizontal and vertical Milling Machine1. Driven by Ac servo motor
2. Table automatic feed on X,Y,Z
3. Automatic rapid feed X,Y,Z
Specifications:
| Specifications | Unit | XL6436 | XL6436C | XL6436CL |
| Table size | mm | 1325×360 | 1600×360 | |
| Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | ||
| Spindle taper | 7:24 IS050 (H) 7:24 IS040 (V) | |||
| Arm travel | mm | 550 | ||
| Distance between spindle nose and table surface | mm | 196-656 | ||
| Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | |
| Distance between spindle axis and arm surface | mm | 245 | ||
| Spindle speed range | r.p.m | 12steps 60-1750 (V) 12steps 60-1800 (H) | ||
| T-slots(NO./width/pitch) | mm | 3/18/80 | ||
| Main motor power | Kw | 5.5 (H) 4 (V) | ||
| 3 to feed Ac servo motor torque | N.m | 10 | ||
| Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 |
| Net weight | kg | 2685 | 2750 | 2800 |
Standard accessories:name
Specification Model
Qty
| Allen wrench | 5 | 1set |
| intermediate bushing | 7:24 ISO50/MS4 | 1 piece |
| Allen wrench | 10,14 | 1 piece/per |
| fixed wrench | 13 × 17 | 1 piece |
| fixed wrench | 22× 24 | 1 piece |
| fixed wrench | 36 × 41 | 1 piece |
| 7:24 ISO50 milling chuck | 4\5\6\8\10\12\14\16 | 1 set |
| machine vise | QB160 | 1 piece |
| Taper shank type milling arbor | 7:24 ISO50 Φ32 | 1 set |
| Milling arbor | Φ27 | 1 set |
| Milling arbor | Φ32 | 1 set |
| draw bar | M24(,) | 1 piece/per |
| nut | M24 | 1 piece |
| carrier ring | 24 | 1 piece |
Optional accessories:Name
Specification Model
Remark
| XC Series Vertical milling head | XC622B | 7:24 ISO |
| XC Series Universal milling head | XC624A | MT4 |
| Universal dividing head | 125A | Include three-jaw chuck |
| Universal dividing head | 160 | Include three-jaw chuck |
| Swivel table | φ320 | Manual |
| Indexable carbide mill tool | φ63 | With shank |
| Indexable carbide mill tool | φ100 | No shank |
| Indexable carbide mill tool | φ160 | No shank |
| Sizing block | 240x120 | 6 pieces/set |
| Clamping kit | ||
| Milling chucks | 15/ | |
| Q13 Series Machine vice | 200 | |
| Q13 Series Machine vice | 250 | |
| Q13 Series Machine vice | 320 | |
| Q41 Series Machine Vice | 160 | |
| Oil gun | 1 piece |
