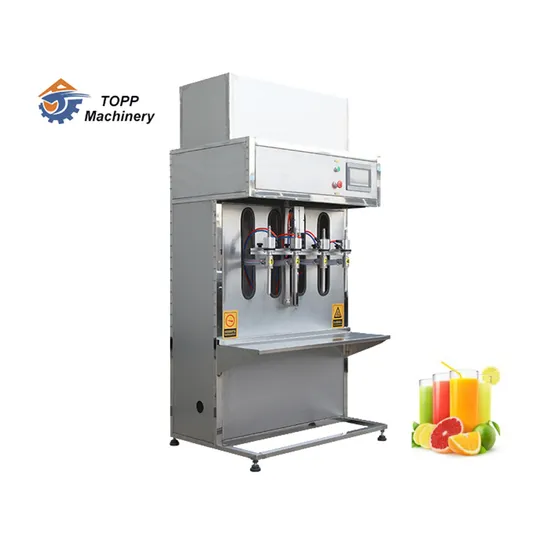

Liquid Detergent Filling Machine Olive Oil Water Juice Bottle Filler
| US$1,000.00-1,507.00 | 1 set (MOQ) |
Basic Info.
Model NO.
TPP-ZL4A
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Bottle
Packaging Material
Glass
Product Name
Fruit Juice Filling Machine
Function
Filling
Motive
Electric Motor
Certificate
CE/ISO9001
Advantage
High-Efficiency
Filling Head
4 Heads
Filling Scope
500-5000ml
Air Compressor
Needed
Power
0.55kw
Weight
230kg
Capacity
400-900PCS/Hr
Installing a Conveyor Line
It Saves Costs and Improves Production Efficiency.
Application
Low Viscosity Liquid Filling
Features
Easy Operation, Easy Cleaning
Digital Display Control
Use Actual Measurement Correction Method
Transport Package
Plywood Case Packing
Specification
1200*750*1900mm
Trademark
TOPP
Origin
China
Production Capacity
200 Pieces Per Month
Packaging & Delivery
Package Size
125.00cm * 80.00cm * 200.00cm
Package Gross Weight
260.000kg
Product Description
liquid detergent filling machine olive oil water juice bottle fillerProduct Description Introduction:
1.The machine adopts integrated electrical design, high quality electrical components, convenient system operation
and adjustment, 7-inch touch screen operation, friendly man-machine interface, using novel automatic control technology, in order to achieve more high-precision filling. 2. Filling volume adjustment with actual measurement correction method, digital display
control. 3.Easy operation, easy cleaning and maintenance, low maintenance cost. 4.Single cylinder stable diving, effective bottle positioning. 5.It is widely used in low viscosity liquid filling such as fruit juice antifreeze, glass water seasoning, wine,
liquor, olive oil, etc. Product Parameters
| model | TPP-ZL2A | TPP-ZL4A | TPP-ZL8A |
| Filling speed | 200-500pcs/hr | 400-900pcs/hr | 700-1200pcs/hr |
| Filling head | 2 pieces | 4 pieces | 8 pieces |
| Filling scope | 100-1000ml 500-5000ml 5000-10000ml | ||
| Power | 0.37kw | 0.55kw | 0.75KW |
| Dimension | 700*700*1900mm | 1200*750*1900mm | 1200*850*1900mm |
| weight | 150kg | 230kg | 260kg |
Detailed description
~Touch screen operation is simple and intuitive, no special training required.
~Special vacuum back-suction filling valve ensures no dripping or leakage during the filling process.
~The filling machine is equipped with a recycling device to avoid waste and keep it clean and hygienic. Company Profile
