Stone cutting Bridge saw 5 axis GQ-3220D for marble granite sintered stone porcelain

Product Details

Product Description

Product Description

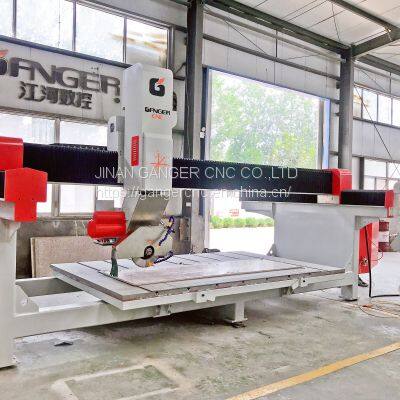

Bridge saw GQ-3220D stone machinery for marble granite sintered stone porcelain
*with English language
*with Safe door
*with Laser guiding cutting
*with Hand wheel
*with Automatic tool measurement
*with Hydraulic tilting table
*with Vacuum system for material saving and nesting
*with Milling bit for inside corner cut (sink cut)
*with Mono block structure and Small footprint
Bridge saw GQ-3220D functions:
Nesting line cut (with vacuum moving )
Miter cut (4 sides of slab,45°and any angle)
3D Profiling/Polish
Mill Bit cut CAD/ NC sink-out and inside side cut
/Round/sector/hexagon/curve/oval/horse belly line cut
Advantage 1:17 years experience in stone machinery industry.
Advantage 2: Perfect and timely after-sales service.
Advantage 3: Humanized CNC control.
Advantage 4: Servo motor with smooth cutting, no chipping.
Advantage 5: laser guiding cut.
Advantage 6:A axis rotates 0-90 degree,C axis rotates 0-360 degree
Advantage 7: Vacuum Suction device-move slab saving and nesting
Advantage 8:Hydraulic titling table 85 degree easy loading/unloading slabs.
Advantage 9: Simple installation,delivery by mono-bloc (98%).
Advantage 10: Small footprint .No foundation,it is simply secured to the floor.
Advantage 11: Automatic tool measurement
Machine Features:
1. XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree automatic rotation.
2. Vertical and horizontal cutting, multi-angle diagonal cutting.
3. Four sides chamfering (any angle between 0°-90°),
4. Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting,
5. Cutter bits, Contouring, Suction moving.
6. Intelligent control system.
7. Table tilts 85 degree to load slabs easily.
Applicable industry & material
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.

Technical Parameters
Model	GQ-3220D
X/Y/Z Axis working size	3200*2000*500mm
Diameter of blade	350mm
Working table size	3200x2000mm
Blade Motor power	15KW
Total power	29KW
Rotation speed of blade	3000/6000rpm
A axis rotation angle	0°-90°
C axis rotation angle	0°-360°
Table Tilting angle	85°
Control system	GANGER
Gross weight	4500KGS
