Qk1313X1m CNC Pipe Threading Lathe with Good Quality

Product Description

QK1313 CNC pipe thread lathe
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.This series lathe machine is widely used in industries including petroleum exploiting,minerals mining,chemical piping. it is high-efficient and repairing drilling pipe,drilling rod,thread coupling and so on.
FEATURES
1.Big spindle bore and double chuck to ensure process big diameter pipe
2.One-piece bed adopts high strength iron to ensure rigidity and precision
3.ultrasonic frequency quenched guide-ways ensure good wear-resistance.
4. carriage and guide way contact surface use Turcite B to maintain accuracy.

Product Parameters

Main parameter	SPECIFICATION	UNIT	QK1313	QK1319			QK1322
			Manual shift	Manual shift	HYD shift		Manual shift	Manual shift
Capacity	Swing over bed	mm	630/800	630/800			630/800
	Swing over coss slide		340 /520	340/520			340 /520
	Distance between center	mm	1000-6000	1000- 6000			1000 - 6000
	pipe threading range	mm	30-126	50-193			50-220
	Guideway width	nin	550	550			550
	Max load capacity	T	3	3			3
Spindle	Spindle bore	mm	130	206			225
	Spindle speed steps		VF 3	vF.4step		HYD.4 steps	VF.4 step	HYD.4 step
	Spindle speed range	rpm	30-800	20-500			20-500
	Chuck	mm	φ400 3-jaw manual g	500 3-jaw manual			500 3-jaw manual chuck
Turret	Turret /tool post		NC turret 4 position	NC turret 4 position			NC turret 4 position
	Tool shank size	mm	32×32	32×32			32x32
Feed	X axis travel	mm	340/420	340/420			340/420
	Z axis travel	mm	1000-6000	1000-6000			1000-6000
	X axis rapid traverse	mm/min	4000	4000			4000
	Z axis rapid traverse	mm/min	6000	6000			6000
Tailstock	Tailstock quill diameter	mm	φ100	φ100			φ100
	Tailstock quill taper		MT6	MT6			MT6
	Tailstock quill travel	mm	250	250			250
Motor	main spindle motor	kW	11	11			11
	Coolant pump motor	kW	0.25	0.25			0.25
Dimension	WidthxHeight	mn	1800x1850	1880x1850			1880x1850
	Length	mm	3000/8300	3000/8300			3000/8300
Weight	Net weight		4-8	4.6-8.6			4.7-87

Configuration :
Standard Accessories
Siemens controller,NC turret,automatic lubrication, coolant pump,semi-shield
OPTIONAL ACCESSORIES
Fanuc or other brand CNC controller,quick change tool post, hydraulic turret or power turret,pneumatic chuck,hydraulic tailstock, full-shield
pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.

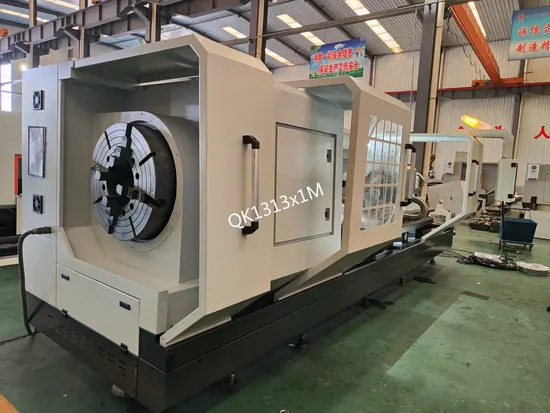

Detailed Photos
