Phc Concrete Pile Machine Precast Concrete Steel Pile Pole Mold Electric Concrete Spun Pile Machine

Product Description

No.	inner diameter /mm	Running wheel distance /mm	Running wheell diameter /mm	Length /m
1	ø300	2000	ø600	7-11
2	ø400	2000	ø640	7-12
3	ø500	2000	ø740	7-15
4	ø600	2000	ø840	7-15
5	ø700	2000	ø1000	7-39
6	ø800	2000	ø1100	15-60
7	ø1000	2000	ø1300	15-60

1.Concrete pile mold The concrete pile mould is one of important pile production equipment, it is not only a forming mold but also is a device to bear tensioning force. Pile mould is easy to be broken and deformed because the mould needs bearing centrifugal force, vibration force, heat force, fatigue stress during the production, so when designing the mould, the mould need to be with enough strength and rigidity except for precise size, simple structure, convenient for disassembly and assembly.

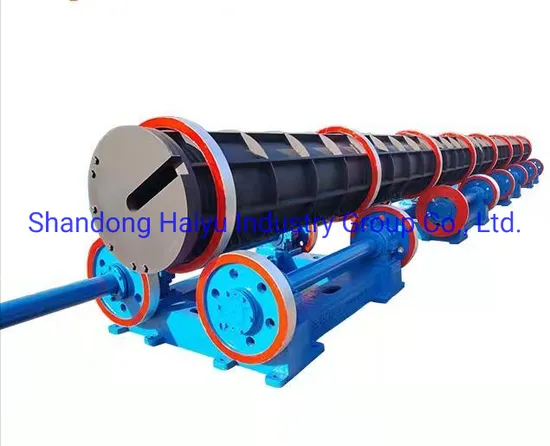

2.Concrete Pile Spinning Machine The working principle of concrete pile spinning machine is transmitting the power of the motor to the driving wheels by the belt transmission, drive the rotation of the steel mould by the friction between the driving wheel and the running wheel of steel mould, so as to achieve the purpose of centrifugal shaping of concrete. Our spinning machine has advantages like firm structure, safe and energy-saving.
