5G Module RM500Q-AE, 5G 4G 3G Module RM500QAE Support Multi GNSS 2.5Gbps/900Mbps 5G Sub-6GHz RM500Q

Product Description

Product Description

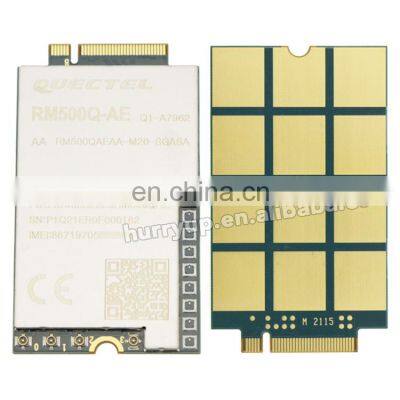

Description5G RM500Q-AE * 5G sub-6GHz module * 52.0mm × 30.0mm × 2.3mm * 8.4g * M.2 form factor * Max. downlink 2.5Gbps / 900Mbps uplink * Extended temperature range of -40°C to +85°CKey Features * Supports both NSA and SA modes * Compatible with Quectel’s LTE-A Cat 6 EM06, Cat 12 EM12 & EM120R-GL, and Cat 16 EM160R-GL * Supports Qualcomm® IZat™ location technology Gen9C Lite * Supports MIMO * USB 3.1 / PCIe 3.0 high speed interface * Quectel Enhanced AT Commands * Multi-constellation GNSS receiver available * Feature refinements: DFOTA and VoLTE (optional)OverviewThe RM500Q-AE is a 5G M.2 module measuring 52.0mm × 30.0mm × 2.3mm which meets the 3GPP Release 15 specification and is optimized for IoT and eMBB applications anywhere in the world outside the US. It supports both standalone (SA) and non-standalone (NSA) modes and is compatible with Quectel’s LTE-A category 6 module EM06, category 12 modules EM12 & EM120R-GL, and category 16 module EM160R-GL , enabling customers to migrate from LTE-A to 5G.The RM500Q-AE supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the integrated GNSS receiver greatly simplifies product design and makes positioning capabilities quicker and more accurate. A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB/PCIe drivers for Windows 7/8/8.1/10, Linux, Android) allow the RM500Q-AE to serve a wide range of IoT applications including business routers, home gateways, set top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
