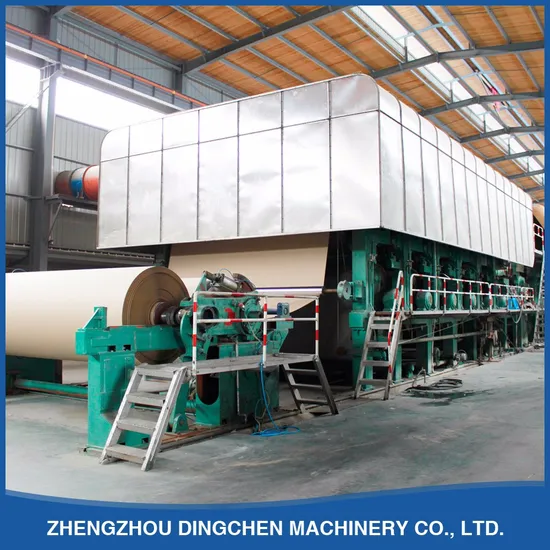

2400mm 30tpd Multi-Dryer and Pressure Fromer Type Carton Craft Paper Making Machine

Product Description

2400 multi-dryer and pressure fromer type kraft paper machine
Technical Data:
1. Output paper:Kraft paper, carton paper,
2. Raw material:waste paper
3. Capacity:30T/D
4. Output paper weight:90-180g/m2
5. Net paper width:2400mm
6.Drive way: AC frequency conversion adjustable speed, sectional drive;
Main Structure:
1.Cylinder part:cylinder former 3sets; couch roll 3sets;reverse roll 1 set; pneumatic pressure device.
2.Press part: stone roll 1 set ;rubber roll 1 set;
3.Dryer part:Dryer can 8+4 sets;pneumatic pressure device
4. Winding part:Cylinder type winding machine 1 set, Rewinding machine 1 set.
Main machine configuration

No.	equipment	QTY
1	2400mmPaper making machine	1 set
2	dryer can Exhaust hood	1 set
3	Propeller fan	3 sets
4	Cylinder former	3 set
5	Roots vacuum pump	1 set
6	suction box	3 sets
7	2400mm Winding machine	1 set
8	calender	1 set
9	Rewinding machine	1 set
10	high consistency Hydra-pulper	2 sets
11	Fiber separator	1 sets
12	Pressure screen	1 set
13	High frequency vibration screen	2sets
14	Double disk pulp refiner	3 sets
15	Pulp thickener	1 set
16	Impeller	6 sets
17	4 inch Pulp pump	4 sets
18	6 inch Pulp pump	6 set
19	8 inch Pulp pump	4 set
20	Electrical Control cabinet	1 set
21	Air compressor	1 set
22	Work table	1 set

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
