CE Certified Spraying Painting Cabin for Auto Refinishing

Product Description

Ce Certified Spraying Painting Cabin for Auto Refinishing
1.HIGHLIGHTS
Solution: 4 Prep stations (7x4.4x3m) & 2 Paint booth (7x4.5x3m)
The auto body shop solution consists of 2 spray booths and 4 prep stations.
The spray booth comes with full downdraught airflow, premium lighting, wide workspace and high performance air makeup unit, which make the booth a perfect choice for achieving quality paint finish.
All 4 prep stations come with rear semi downdraft air, ceiling plenum, rear exhaust plenum and exhaust units.
In combination of the spray booth and prep stations, the installations greatly contribute to improving the shop appearance providing an actual and elegant image that your company and clients will highly appreciate.
2.SPECIFICATIONS

SPRAY BOOTH
ITEMS	SPECIFICATIONS
Model	IT-SUPER-701 Spray Booth for Auto Body Shops
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	7000 X 4500 X 3000mm (L X W X H)
External dimensions	8560 X 4600 X 3660mm (L X W X H)
Airflow	Full Downdraft
Plenum (height)	600mm
Extraction	350mm basement sunken in the ground
Extraction area	31.5m2
Grids carrying capacity	900kg/wheel
Entrance door	3400x2900mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 6 X 18W, 864W total
Sidewall lights (LED)	8 sets, each 2 X 18W, 288W total
Brightness	>1,200LUX
Filters	Bag filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x7.5KW, SIEMENS motor
Air volume	28,000m3/h
Empty loaded air speed	0.24m/s
Heats	232kw heat exchanger, RIELLO gas burner RS5
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter as option
Stack light	Yes.
Rated power	20KW

PREP STATION
ITEMS	SPECIFICATIONS
Model	Car Prep Station
Design standard	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
Internal dimensions	7000×4400×3000mm (L×W×H)
External dimensions	8310×4500×3660mm (L×W×H)
Rear wall	Single layer galvanized steel, powder coated
Plenum	With plenum, 600mm(H)
Exhaust plenum chambers	3470*660*800mm
Filter areas	2.7m2
Front door	4200x2650mm, 1 set, electric soft curtain door
Divider door	5800x2650mm, 1 set, electric soft curtain door
Ceiling lighting	8 sets, each 4 X 18W, 576W total
Brightness	> 800Lux
Exhaust system	1×7.5KW, 970RPM, 380V, 50HZ, SIEMENS motor
Air volume	28,000m3/h, 650pa
Filters	High efficiency ceiling filter, pleated andreae filters + fiberglass filter, exhaust filter
Controls	Soft start, emergency stop switch, lighting, failure indication
Electrical & Tool cabinets	Yes.
Special item	Rated power: 10KW

3.DETAILS
BOOTH STRUCTURE (SPRAY BOOTH) 350mm high basement sunken in the ground Vertical wall panels 600mm plenum
OPTION Other types of basement design are available. Contact us for more details.
4-LEAF MAIN DOOR & LIGHTS (SPRAY BOOTH) Main entry door with big safety glass windows and panic latch LED lamps, IP55 protection grade lighting fixtures
GENERATOR UNIT (SPRAY BOOTH) 2*7.5kw fan unit, SIEMENS motor 28,000m3/h air volume, 0.24m/s empty loaded air speed Cycle damper (for painting and baking phase) 232kw heat exchanger, RIELLO RS5 diesel burner
Notes: Non-spark fan design perfectly conforms to EN13355-2004 requirements for fans. Motor and fan are completely separated, meeting the compulsory requirements for fans in EN13355-2004.

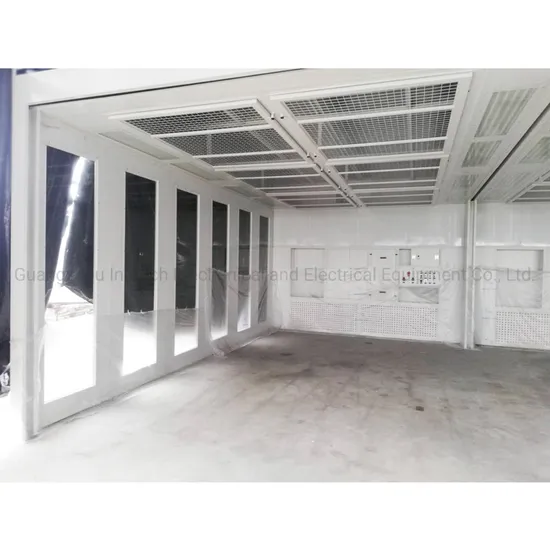

CAR PREP STATION
- 600mm plenum
- Flat ceiling lighting fixtures
- Exhaust fan unit, 1*7.5kw
- Exhaust plenum chambers at the back
- Electrical and tool cabinets on the rear wall
- Electric soft curtain door in the front and as divider
CONTROL BOX AND TOOL BOX (FOR PREP STATION)
ELECTRIC SOFT CURTAIN DOOR
FAQ Q: How do I know if your spray booth can fit my shop? A: Not sure if the booth will fit we provide CAD shop layouts to make sure you get the right booth configuration and dimensions for your shop. Please send your specific inquiry through. We will work out the detailed drawing for your approval.
Q: Could you tell me how many prep stations and spray booths that I need and how shall I get them arranged at the shop if I tell you the required production capacity and the shop dimensions? A: Certainly. Infitech can provide complete auto body shop design and layout for you. You can send us your requests, and we will work out the ideal solution for you.
Q: For the prep bay, I want downdraft airflow. A: No problem. We can adapt to your requirements.
Q: How long is the warranty period? A: 2 years.
Q: How do you respond if some parts are missing after I get the spray booth? A: We will send new parts to you or we send drawings for you to have them manufactured locally. For the additional cost incurred, we will pay back to you.
As we know, spray booth is not a simple product, but it is a project. It is difficult for us to ensure everything is 100% perfect. But what we can do is to respond to your requests in time, and get problems solved. In the meantime, we do the best to get things correct when we pick up goods for package and shipment.
Q: How many sets of spray booth can be shipped in 1 container? A: It depends on the spray booth configurations. For this standard spray booth IT-701, 2 sets can be shipped together in 1 big container.
