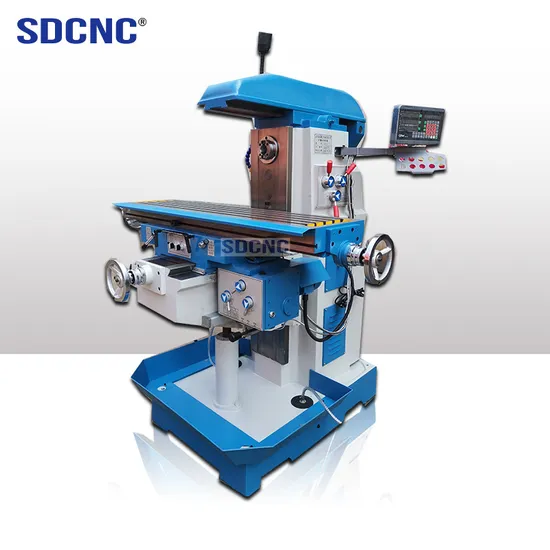

Milling Machines X6128 Metal Milling Machine Milling Machinery
| US$6,200.00-6,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6128
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
1200*280mm
Table Stroke
620/260/400mm
T-Type Slot
5/14/50mm
Spindle Speed Range
Rpm 8steps 13~265
Transport Package
Wood Packaging
Specification
1725*1450*1750
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
1725.00cm * 1450.00cm * 1750.00cm
Package Gross Weight
1350.000kg
Product Description
The main performance characteristics :
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application :
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling
cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane,
inclined plane, grooves, holes, and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments,
automobiles, motorcycles and other industries of the ideal processing equipment. Product Parameters
Product main technical parameters:
| Specifications | Units | X6128A | X6128C |
| Table size | mm | 1200×280 | 1200×280 |
| Table stroke | mm | 620/260/400 | 620/260/400 |
| T-type slot (numbers / width /space) | mm | 5/14/50 | 5/14/50 |
| Distance from spindle axis to table surface | mm | 110~510 | 110~510 |
| Spindle taper | 7:24 IS040 | 7:24 IS040 | |
| Spindle speed range | rpm | 8steps 13~265 | 8 steps 32~840 |
| Spindle motor power | KW | 3 | 3 |
| Overall dimensions | mm | 1725×1450×1750 | 1725×1450×1750 |
| Machine weight | Kg | 1350 | 1380 |
