2000L/H RO Water Treatment System for Food Processing Use Water

2000L/H RO Water Treatment System for Food Processing Use Water

US$8,000.00-200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SCL
Application
Industry
Capacity
Customizable
Material
Stainless Steel 304
Power Supply
380V 50zh 3pH or Customizable
Structure
Mechanical Filter, Carbon Filter, RO System
Membrane Brand
Filmtec
Transport Package
Skid Mounted
Specification
CAPACITY: CUSTOMIZABLE
Trademark
LONGQIANG
Origin
Zhejiang, China (Mainland)
Production Capacity
100 Unit/Units Per Month

Packaging & Delivery

Package Size
220.00cm * 150.00cm * 220.00cm
Package Gross Weight
1200.000kg

Product Description

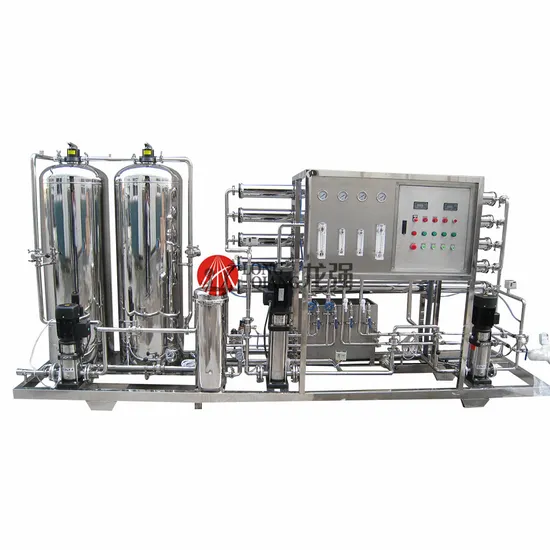

Reverse osmosis purification system
This system adopts stainless steel sand filter, active carbon filter effectively to remove big impure particles and suspending matters, improve RO membrane water inputting index, effectively remove the smell and rest chlorine of the original water, and improve the taste of water quality. The main machine adopts American high effective low-pressure compound film, with single film salt removing degree up to 99%. The high low-pressure protection imported form Korea ensures the breakdown low to 0, with the outputting water up to national pure water standard.
Reverse osmosis device
The reverse osmosis device is an equipment to purify the saline water under the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures id used to obtain the purpose to separate, extract purify and condense.
More than 97% soluble salts and 99% glues, microbe, particulate and organic substances, etc can be removed by the reverse osmosis. It becomes the most idea equipment for modern pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high quality water, easy operation and maintenance.
RO system including
raw water pump, sand filter, active carbon filter, chemical doser, water softener,5 u m micro filter, reverse osmosis system, back washing system, sterilization, water tank and fittings
Technical parameter
Model RO-1000 RO-3000 RO-5000 RO-10000
Process capacity (L/h) 1000 3000 5000 5000
Raw water pump model CHL2-40 CHL8-40 CHL8-50 CHL8-50
Sand filter 400*1500 600*1500 800*1500 800*1500
Active carbon filter 400*1500 600*1500 800*1500 800*1500
Dosing system
Micro filter Dosing box
Cartridge specification 65*500 65*750 65*750 65*750
Cartridge NO. 5 5 7 7
Reverse Osmosis system
RO back wash system (including cleaning pump and cleaning box etc.)
Size (RO bar) L 2600 2600 2600 2600
W 700 700 900 900
h 1900 2000 2000 2000
Note: We offer customized RO water system according to customers' raw water report and capacity.
