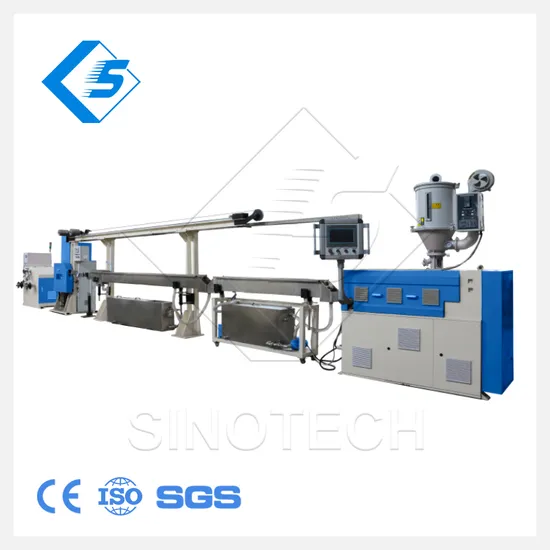

PLA ABS Plastic 3D Printer Filament Production Line Extrusion 3D Printer Filament Making Machine Extruder

PLA ABS Plastic 3D Printer Filament Production Line Extrusion 3D Printer Filament Making Machine Extruder

US$11,000.00
1 Set
US$8,500.00
2 Sets
US$4,500.00
3+ Sets

Basic Info.

Model NO.
SN-25
Type
Pipe Extruder
Plastic Processed
PVC
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Raw Material
ABS/PLA/PETG/WPC
Control System
PLC Touch Screen
Filament Diameter
1.75 mm. / 3 mm.
Diameter Tolerance
0.05mm
Output Capacity
2.5-3kg/H
Main Motor Power
2.2kw
Machine Size
3000*600*1800mm
Machine Net Weight
480kg
Screw Diameter
25 mm.
L/D
28:1
Surface Treatment
Nitrogenization and Polished
Screw Material
38crmoala
Water Tank Raw Material
304#
Name
Mini 3D Printer Filament Extrusion Line
Feed Back Control System
Between Laser Gague and Screw Speed
Transport Package
Wooden Box
Specification
CE, ISO
Trademark
Sino-Tech
Origin
China
Production Capacity
2.5-3kg/H

Product Description

Product Description
Lab Mini ABS PLA PETG Plastic 3D Printer Filament Extrusion Production LineProfessional 3D Filament Extruder Supplier has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.
Main Features
Feature:1. Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,2. ABS filament process temperature is 230-260° C,melting point is 230° C3. PLA 3D printer filament is 210-235°C, melting point is 200°C4. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.5. PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C 6. PC temperature for printer is 230°C-250°CMelting point is 260°C. 7. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C. Detailed information : 1. Produce process 2. Before produce extruding filament ,we will dry ABS and PLA for a enough time (1-1.5 hours). 3. Mix with colors masterbatch or colors powder, all which .4. Adjust temperature and dragging rate , make filament diameter range at 1.7-1.8mm/2.95-3.05mm, roundness +/-0.05mm, each spool net weight 1kg+/-0.02k
SN-25 Mini 3D printer filament Extrusion
Control System PLC touch screen
Feed back control system Between laser gague and screw speed
power consumption and power supply 6KW Triphase 380/50 Hz
Raw Material ABS/PLA/PETG/WPC
Filament Diameter: 1.75 mm. / 3 mm.
Diameter tolerance 0.05mm
Output Capacity 2.5-3kg/h
Hopper drier: one set 12KG Volume
Main Motor Power 2.2KW
Max. Heating Temp. 300degree
Heating Power: 3KW
Machine Size 3000*600*1800mm
Machine net weight 480KG
Machine gross weight 450KG
Screw Single screw Extruder
Diameter 25 mm.
L/D 28:1
Raw material 38CrMoAlA
surface treatment Nitrogenization and polished
Inner surface treatment Nitrogenization and polished
Barrel
Material 38CrMoAlA
Inner surface treatment Nitrogenization and polished
The nitride layer thickness 0.5~0.7 mm.
The surface hardness HV850~940
Heating control zone 6
Mould, a connecting body 1
Water tank 1 SET
Raw material 304#
Size 1200x100x120mm
Single Axis Laser gauge unit 1 SET
Model NO LST-25
Measurement range 0-25mm
Fouor wheel puller 1 SET
Rated Power 0.37KW
Control style: Inverter control
Diameter of wheel Φ80 mm
Material of wheel PU rubber coated
Single Auto winder 1 SET
Applicable spool size Max.diameter : 300 mm. Width:100 mm.
Power 0.37W
Control style inverter control
Drive Timing belt control
machine frame SS steel machine frame

Final Product
Company Profile

Packaging & Shipping
FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
