Precision Open Robot Water CNC Waterjet Cutting Machine Station for Automotive Interior and Exterior Parts Tank

Product Description

Open Robot Waterjet Cutting Machine Station for Automotive Interior and Exterior PartsProduct Description Open Robot Waterjet Cutting Machine Station

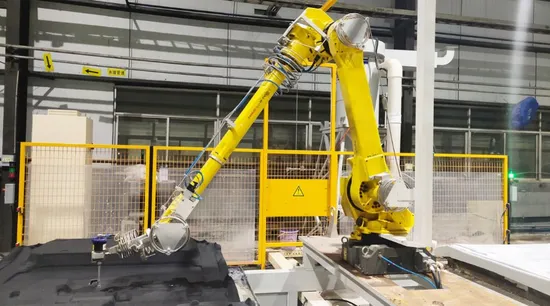

This robot water cutting workstation uses pure water to cut. When the water is pressurized by high pressure pump to 6000psi, it adopts advanced high pressure tube coil technology, and uses the robot arm and wrist to move rapidly in straight line or arc through the nozzle of the water cutting gun head, so as to realize 3D cutting truly. Compared with traditional manual trimming, The cutting precision is greatly improved and the quality is excellent.
Main Features of Robot System:Can carry out arbitrary curve cutting, flexible and convenient, widely usedCutting without thermal deformation, the incision is smooth and smooth without burrs,The width of the material removed by the pure water jet is usually about 0.2-0.8mm. The incision width optimizes material utilization and increases cost effectiveness.The robot is easy to program and can be matched with a variety of specifications for greater flexibility and faster cutting speed.Double station design, loading and unloading on one side and processing on the other side, high equipment utilization rate.Air negative pressure adsorption fixed products, eliminating the traditional fixture, more convenient and quick to improve production efficiency.Safety protection device, in the process of processing once someone enters, the robot immediately stops action, and cut off high pressure water, high safety.The touch screen display function can display the processing status, processing quantity, alarm information, fault code, etc. on the screen, and the cutting status is clear at a glance.High pressure pump features:Independently developed servo motor drive, energy saving and environmental protectionOptional double supercharger, one standby, in the maintenance of the supercharger at the same time without stoppingThe pressure can be adjusted to cope with different product needs.Pressure relief valve external, press the emergency stop immediately pressure relief, protect safety at the same time, easy maintenance.Plate heat exchanger oil cooling device, low noise heat transfer faster.The 150L tank has a larger capacity to ensure the pressure of the oil pump.Imported gear pump, fit tightly.1L energy storage device to ensure stable pressure, continuous working pressure 320Mpa

60K high pressure pump
Type of supercharger	Type LAT /TSSOP	Backup supercharger	Optional
Work stress	380Mpa	Maximum pressure	413Mpa
Continuous working pressure	360Mpa-380Mpa	Output interface	3/8 connector
Rated power of motor	48kW	Power supply voltage	Ac 380V/50Hz
Maximum output water flow	3.8 L/min	Output the number of gun heads	Colleagues supply 1-3
Tank capacity	120L	Accumulator capacity	1L
Weight	1.5 T	Overall dimensions (length, width and height)	2.1 m * 1.1 m * 1.4 m
