Submersible Sand Slurry China Manufacturer Excavator Driven Hydraulic Dredging Slurry Pump

Submersible Sand Slurry China Manufacturer Excavator Driven Hydraulic Dredging Slurry Pump

US$800.00 1 set (MOQ)

Basic Info.

Model NO.
QSZ slurry pump
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Open
Usage
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump
Size
1"-20"
Flow
13-5000m3/H
Head
6-120m
Material
Cr Alloy A05, A07, A51 etc
Sealing Type
Gland Packing, Expeller, Mechanical
Speed
970, 1450, 2950rpm
Drive Type
CV, DC, Zv, Cr
Structure
Rubber/Metal Liner
Color
Green, White, Red, Yellow etc
Guarantee
12 Months
Transport Package
Export Standard Wooden Box
Specification
CE, ISO, SGS
Trademark
AN PUMP
Origin
Hebei China
HS Code
841370
Production Capacity
300 Sets/Month

Product Description


Product Description

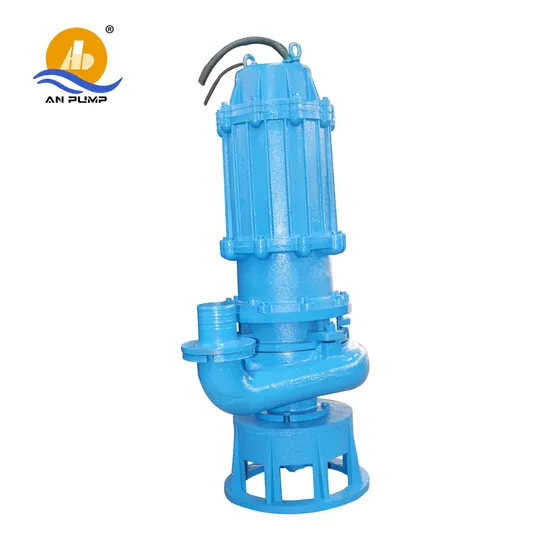

QSZ submersible slurry pump is our factory technical personnel absorbing foreign advanced technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into the medium to work hydraulic machinery. The product is excellent selection, advanced structure, wide flow channel through ability, metallurgy, chemical, mining, power plants and other enterprise for conveying containing sand, cinder, tailings and other natural particles or liquids, it is the ideal alternative of traditional slurry pump .
The products add a mixing impeller in the bottom by another except main impeller and can precipitate in the slag jet hit the water and solid particles into the mixing liquid, the pump in the case where no auxiliary means to achieve a transport of high concentration. Unique sealing device can effectively balance the pressure inside and outside of oil chamber, making mechanical seal both ends of the pressure to maintain a balance, the maximum guarantee reliable operation of the mechanical seal, greatly prolonging its life, the motor according to user requirements increase water testing, overheating and other protection devices that make products for harsh working conditions for long-term safe operation.
MODEL MEANING
QSZ SUBMERSIBLE SLURRY PUMP STRUCTURAL FEATURE
QSZ SUBMERSIBLE SLRURY PUMP PERFORMANCE DATA
No. Model Outlet Dia
mm		 Flow
( m³/h)		 Head
(m)		 Power (KW) Speed
(r/min)
16 QSZ150-22-22 150 105 25 22 1460
150 22
180 20
17 QSZ200-15-22 150 140 17 22 1460
200 15
240 13.5
18 QSZ100-35-30 150 70 38 30 1460
100 35
120 31
19 QSZ140-30-30 100 105 33 30 1460
140 30
180 26
20 QSZ200-25-30 150 140 28 30 1460
200 25
240 21
21 QSZ250-20-30 150 175 23 30 1460
250 20
300 18
22 QSZ100-45-37 150 70 48 37 1460
10 45
120 42
23 QSZ100-50-37 150 70 53 37 1460
100 50
120 47
24 QSZ300-20-37 150 240 22 37 1460
300 20
360 17
25 QSZ100-60-45 100 70 64 45 1460
100 60
120 55
26 QSZ200-30-45 150 140 33 45 1460
200 30
240 27
27 QSZ150-45-55 150 105 47 55 1460
150 45
180 42
28 QSZ250-35-55 150 175 38 55 1460
250 35
300 33
29 QSZ300-30-55 150 210 34 55 1460
300 30
360 26
30 QSZ600-15-55 250 420 18 55 1460
No. Model Outlet Dia
mm		 Flow ( m³/h) Head (m) Power (KW) Speed (r/min)
46 QSZ400-50-110 200 280 54 110 1460
400 50
480 45
47 QSZ500-35-110 200 350 38 110 1460
500 35
600 31
48 QSZ600-30-110 250 420 33 110 1460
600 30
720 26
49 QSZ800-25-110 300 560 28 110 1460
800 25
960 21
50 QSZ100-18-110 300 700 22 110 1460
1000 18
1200 13
51 QSZ780-26-110 300 545 29 110 1460
780 26
935 22
52 QSZ400-60-132 200 280 64 132 1460
400 60
480 55
53 QSZ500-45-132 200 350 49 132 1460
500 45
600 42
54 QSZ500-55-132 200 350 59 132 1460
500 55
600 52
55 QSZ800-35-132 300 560 38 132 1460
800 35
960 32
56 QSZ1000-22-132 300 700 27 132 1460
1000 22
1200 17
57 QSZ1250-15-132 300 875 18 132 1460
1250 15
1500 12
58 QSZ600-50-160 200 420 56 160 1460
600 50
720 43

59
 QSZ650-52-160 200 455 56 160 1460
