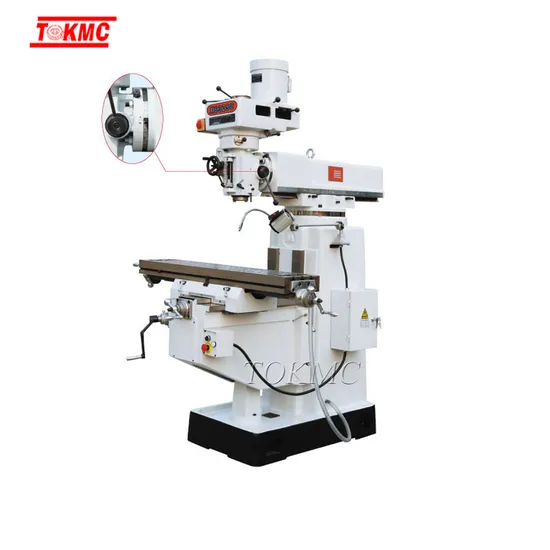

X6325c NSK Spindle Vertical Turret Type Milling Machine
| US$2,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325C
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Machine Table Size
254X1370 mm 10X54"
Table Travel
820X420X400mm
RAM Travel
470mm
T-Slot
3-16
Spindle Taper
ISO40
Spindle Quill Feed
0.0015" 0.003" 0.006" mm/Rev
Spindle Motor
3HP 5HP
Transport Package
1516X1550X2080mm
Specification
1490kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
knee type turret milling machineX6325C
•Rectangular guide way adopted on Y-axis and Z-axis make good rigidity.
•The guide way on saddle is lined with TF wearable material which make machine accuracy stability
•The surface of worktable and 3 axes guide way are hardened and precision ground.
•Milling head adopts 5HP motor, standard spindle 16 speed step pulley head, spindle diameter is 100MM, optional is variable speed
•Fixed structure is used to connect the mill head without adapter,which makes good cut intensity.
| Model | unit | X6325C | X6325D | |
| Table size | mm | 254x1270(10"x50") 254x1370(10"x54") | ||
| Longitudinal travel | mm | 820 | 820 | |
| 920 | 920 | |||
| Cross travel | mm | 420 | 420 | |
| Vertical travel | mm | 400 | 400 | |
| Ram travel | mm | 600 | 500 | |
| T-slot | 3x16 | 3x16 | ||
| Spindle travel | mm | 127 | 127 | |
| spindle speed | rpm | 16 steps 50HZ:65-4500 60HZ:80-5440 Optional:variable 60-3750 | ||
| Spindle motor | hp | 5 | 5 | |
| Spindle taper | ISO40 | ISO40 | ||
| Auto quill feed | mm | 0.04,0.08,0.15 /0.0015",0.003",0.006" revolution | ||
| Head swivel L/R | 90° | 90° | ||
| Head tilting F/B | Fix | 45° | ||
| Weight | kg | 1490 | 1490 | |
