Orfs Female Flat Seal High Pressure Hydraulic Fittings 24211
| US$0.35-10.20 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
24211
Material
Carbon Steel
Standard
Standard
International Standard
Yonghua
Appearance
Galvanized Zinc
Size
3/16" to 2"
Color
Silver and Golden
Technis
Hot-Forged
Transport Package
Well Packed by Cartons and Wooden Box
Specification
3/16" to 2"
Trademark
PASSION or OEM
Origin
Zhejiang, China
HS Code
7307990000
Production Capacity
5, 000 PCS/Day
Product Description
Product Description ORFS Female Flat Seal High Pressure Hydraulic FittingsIt is ORFS Female style, our part number is 24211, if the material is stainless steel, the part number is 24211SS.
Product Parameters Specification:
ORFS FEMALE FLAT SEAT ISO 12151-1 -- SAE J516
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | A | B | S2 | ||
| 24211-04-04 | 9/16"x18 | 6 | 04 | 22.5 | 8.5 | 19 |
| 24211-04-05 | 9/16"x18 | 8 | 05 | 22.5 | 8.5 | 19 |
| 24211-04-06 | 9/16"x18 | 10 | 06 | 22.5 | 8.5 | 19 |
| 24211-06-04T | 11/16"x16 | 6 | 04 | 23.5 | 10 | 22 |
| 24211-06-05T | 11/16"x16 | 8 | 05 | 23.5 | 10 | 22 |
| 24211-06-06 | 11/16"x16 | 10 | 06 | 25.5 | 10 | 22 |
| 24211-06-08 | 11/16"x16 | 12 | 08 | 26 | 10 | 22 |
| 24211-08-05T | 13/16"x16 | 8 | 05 | 25 | 11 | 27 |
| 24211-08-06T | 13/16"x16 | 10 | 06 | 25 | 11 | 27 |
| 24211-08-08 | 13/16"x16 | 12 | 08 | 28 | 11 | 27 |
| 24211-08-10 | 13/16"x16 | 16 | 10 | 29 | 11 | 27 |
| 24211-10-08T | 1"x14 | 12 | 08 | 29.5 | 13.5 | 30 |
| 24211-10-10 | 1"x14 | 16 | 10 | 33 | 13.5 | 30 |
| 24211-10-12 | 1"x14 | 20 | 12 | 33.5 | 13.5 | 30 |
| 24211-12-08T | 1.3/16"x12 | 12 | 08 | 30.5 | 15 | 36 |
| 24211-12-10T | 1.3/16"x12 | 16 | 10 | 31.5 | 15 | 36 |
| 24211-12-12 | 1.3/16"x12 | 20 | 12 | 35 | 15 | 36 |
| 24211-12-16 | 1.3/16"x12 | 25 | 16 | 36 | 15 | 36 |
| 24211-16-12T | 1.7/16"x12 | 20 | 12 | 35 | 14.8 | 41 |
| 24211-16-14T | 1.7/16"x12 | 22 | 14 | 35 | 14.8 | 41 |
| 24211-16-16T | 1.7/16"x12 | 25 | 16 | 35 | 14.8 | 41 |
| 24211-16-20 | 1.7/16"x12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 24211-20-16T | 1.11/16"x12 | 25 | 16 | 35 | 15 | 50 |
| 24211-20-20W | 1.11/16"x12 | 32 | 20 | 42.5 | 15 | 50 |
| 24211-20-24W | 1.11/16"x12 | 40 | 24 | 42.5 | 15 | 50 |
| 24211-24-20T | 2"x12 | 32 | 20 | 36 | 14.8 | 60 |
| 24211-24-24T | 2"x12 | 40 | 24 | 36 | 14.8 | 60 |

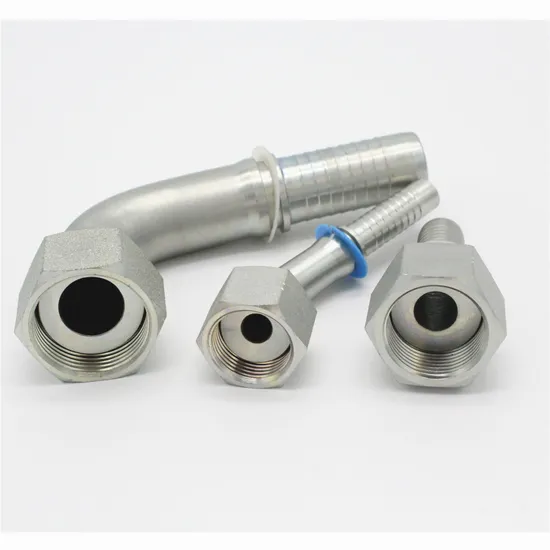

Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 24212-**-**. Detailed Photos
Other Hydraulic Fitting we produce:
Packaging & Shipping Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm
Usually 42 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
Workshop Workshop and Testing Machine
