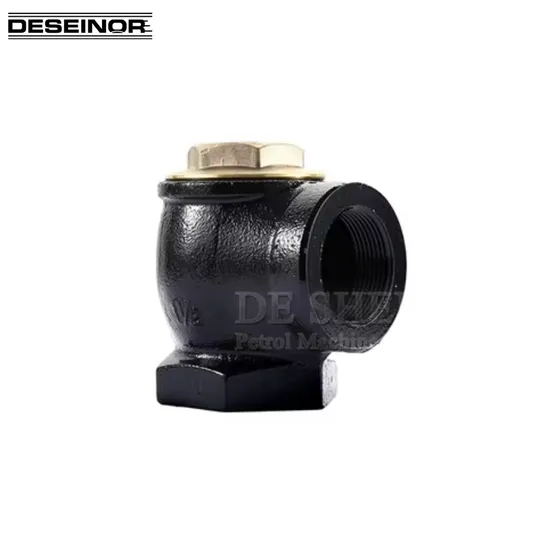

Fuel Station Iron Casting 1.5 Inch Angle Check Valve /Non-Return Valves
Basic Info.
Model NO.
GY-449
Material
Cast Iron
Connection Form
Thread
Structure
Angle
Pressure
Ordinary Temperature
Function
Ddcv Double Lobe
Sealing Form
Bellows Globe Valve
Flow Direction
Reversing
Standard
GB
Application
Industrial Usage
Products Name
Angle Check Valve
Power
Hydraulic
Body Material
Cast Steel
Surface
Electronic Chrome Plated
Transport Package
Carton Box
Trademark
DESEINOR
Origin
China
Production Capacity
5000pieces/Month
Product Description
Angle Check Valve for fuel lines on top of fuel storage tanks1) Installed on suction system, fuel lines on top of fuel storage tanks to maintain prime
2) Models are available with male threaded inlets for connection directly into tank bung fittings or with female inlets for
connection to a nipple that is threaded into a tank bung fitting
3) Single-poppet models can be used in applications where the valve is easily accessible for maintenance and disc cleaning or replacement
4) Spring-loaded poppet and buna-N discs to assist in keeping the valve closed when installed in highvibration areas
5) Recommended for use on suction lines where the pressure does not exceed 34 feet of head (approximately 15 psi)
6) 100% factory tested Specifications:
| Meterial Body | Cast Iron | |||
| Seals | Buna-n | |||
| Inlet-Outlet | BSPF/NPT1.5", BSPF/NPT2" | |||
| Dimension | 45*28*15cm | |||
| Net Weight | 2/2.2KG | |||
| Gross Wet | 2.3/2.5 KG | |||
| Package | 10PCS/CTN | |||
