US$8,200.00 | 1 set (MOQ) |

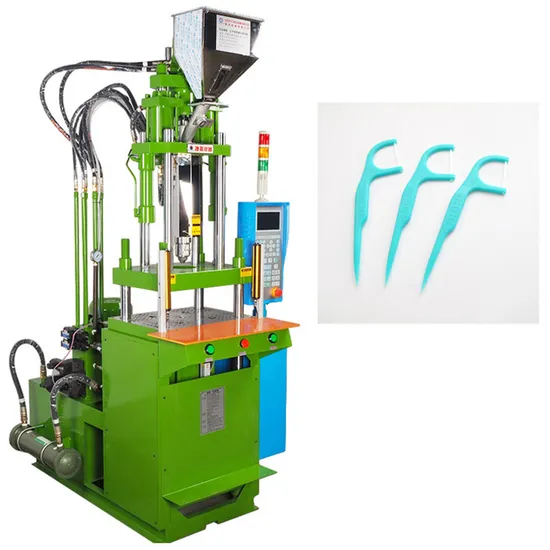

JY-450ST Technique specification | ||||
Model | Units | JY-450ST | ||
Injection System | Screw Diameter | mm | Φ30 | Φ32 |
Injection Pressure | Kg/cm2 | 1742 | 1531 | |
Theoretical Shot volume | cm3 | 98.9 | 112.5 | |
Max. Shot Weight(P.S) | g | 93.5 | 106.3 | |
Injection Rate | cm3/s | 53 | ||
Max.Screw speed | rpm | 0-200 | ||
Temperature Control | ZONE | 3 | ||
Clamping System | Clamping Force | T | 45 | |
Platen Size | mm | 550*390 | ||
Distance Between Tie Bare | mm | 410*250 | ||
Min Mold Height | mm | 150/250 | ||
Opening Stroke | mm | 200 | ||
Max. Open Daylight | mm | 350/450 | ||
Ejector Force | T | 1.75 | ||
Ejector stroke | mm | 35 | ||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | |
Pump Motor Power | Kw | 5.5 | ||
Barrel Heating Power | Kw | 3.4 | ||
Total Wattage | Kw | 9 | ||
Others | Machine Dimensions (L*W*H) | m | 1.18*1.07*2.17 | |
Machine Weight | T | 1.4 |
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose Jieyang Machinery Co., Ltd.? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
