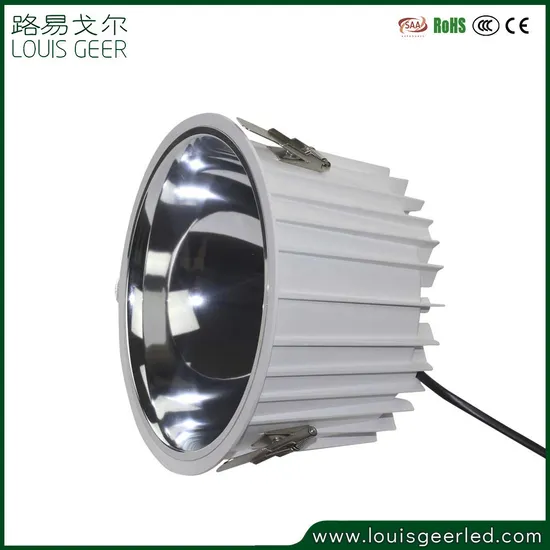

Factory Price Ceiling Fitting Light 15W Recessed COB LED Grille Down Light for Project Quality

Factory Price Ceiling Fitting Light 15W Recessed COB LED Grille Down Light for Project Quality

US$15.71
1-999 Pieces
US$15.20
1,000+ Pieces

Basic Info.

Model NO.
NF-TD57B-15
Power
15W
Color Temperature
3000K,4000K,6000K
Lamp Body Material
Aluminum
Source Number
SMD3030 LED
Installation
Recessed
Warranty
5 Years
Application
Engineering, Home Furnishing
IP Rating
IP20
Certification
CCC, CE, CQC, EMC, LVD, RoHS, SAA, SASO
CRI (Ra>)
80/90
Working Temperature
-20-40
Lifetime
50000 Hours
Dimmable
Dimmable Optional
Color
Black/White
Cut out Size (mm)
Diameter 95mm
Install Style
Embeded
OEM Service
Available
Projection Angle
Non-Adjustable
Transport Package
12PCS/CTN
Specification
Diameter 108*H67mm
Trademark
Louis Geer
Origin
Dongguan, Guangdong, China
HS Code
94054090
Production Capacity
55000/Month

Product Description

Factory price ceiling fitting light 15W recessed COB led grille down light for project quality
The Louis Geer 15W Recessed LED downlight incorporates a high power SMD LED in a stylish design. Our LED downlights is optimised for general area downlighting applications.
Main features: 1. Latest Anti - glare technology, bright but non dazzling . (UGR<19)
2. 110V/220V dimmable available, compatible with 90% dimmable system.
3. Excellent cooling performance.
4. 3/5 Years warranty (Free Replacement), No need customer bare the shipping cost.
5. 100% Non-Flicker(camera free).
6. Our Downlight Plus Emergency Transformer, From 30mins-300mins emergency lighting time is available, In case any power off or electricity shortage, especially on public safe application, like supermarket, school, hospital, convention, exhibition etc.,
Specifications:
Item No. NF-TD57B-15 NF-TD57B-15
Color White Black
Rated Power 15W 15W
Input Voltage 200-240V 200-240V
Material Aluminum Aluminum
CCT 2700-6500k 2700-6500k
IP Rating IP20 IP20
Luminous Efficiency(lm/w) 95lm/w 95lm/w
Beam Angle >60° >60°
LED Chips SMD3030 LED SMD3030 LED
Life Span 50000h 50000h
Warranty 3 or 5 years 3 or 5 years

Detailed photometric report and IES files available by request
Typical applications include high-end commercial fitouts. Retail environments, shopping centres, offices, high-end residential projects.
Our Services 1. Original design and unique products based on our own R& D team, and factory.
2. Able to provide OEM/ODM solutions tailored customer needs; can customize retail box packing, etc.
3. For your inquiry, we're to reply in detail within 24hours.
4. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.
Warranty: 5 year warranty, to best support our customers.
1. For quality issue from our side, we are responsible for repairing.
2. For manual damage or incorrect usage from customer side, LOUIS GEER is to repair while charge caused is at your side, but only a cost price.
3D Modelling & Lighting Design
Louis Geer can provide detailed 3D modelling and lighting design services for your project, including wiring schematics and lighting control system design. Contact us for more information.
Ceiling Height Compatibility
Ceiling height recommendations are for general area lighting purposes
Residential Application..................Ceiling Height: 2.4m-3.7m
Commercial Application.................Ceiling Height: 2.4m-3.7m
Customisation Options
Fixture colour can be refinished
Customisation options are subject to minimum order quantities

LOUIS GEER is a designer, manufacturer of LED lighting products with superior quality. We only make top quality products integrating the most advanced LED technology. Our objective is to become a total solution provider in the LED retail and shop lighting sector.
Main markets: Fashion shops Shopping malls Supermarkets Hotels, offices and public spaces
1. We have unique professional R&D, production,quality control teams.
2. Plentiful experience in LED market to provide OEM/ODM;
3. With imported advanced machine for LED
4. Encapsulation, SMD and reflow soldering.
5. Integrated QC system is implemented in every aspect of production
