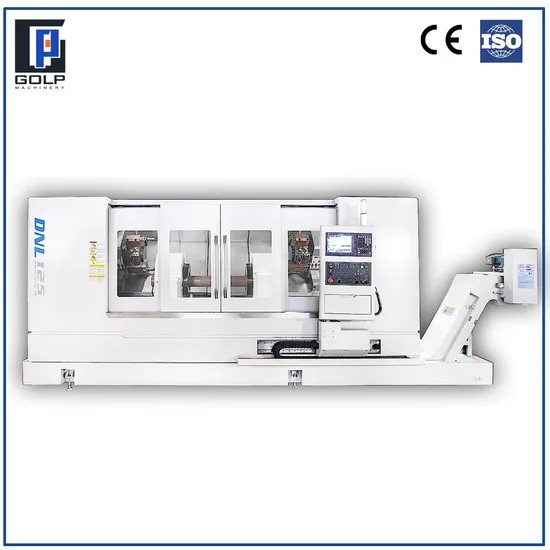

Specialized Machines Double Head Spindle Oblique Slant Bed Shaft CNC Lathe Machine for Logistics Roller

Product Description

Application Case:Logistics roller
Δ Oblique integral frame body, rigidity, easy chip;
Δ Nespond to different parts, only replace the collet and fixtures;
Δ Fix one time,processing both end at one time, high efficiency ,good precision;
Δ Special structure central single or double spindle can respond to high speed and cutting rigid;
Δ Double spindle spacing can be adjusted according to workpiece length;
Δ Independent turret;
Δ Dual-channel controller, easily respond to synchronization processing;
Δ Can carry with truss or joint robot and automatical line.

Item	DNL125	DNL122	DNL121
max body rotate diameter	Ф300 mm	Ф300 mm	Ф300 mm
clamping diameter scope	Ф70-Ф120 mm	Ф70-Ф120 mm	Ф70-Ф120 mm
turning length scope	1000-1700 mm	300-500	100-300
spindle clamp diameter	Ф120 mm	Ф120 mm	Ф120 mm
X/Z travel	220/250 mm	180/200 mm	180/200 mm
X/Z fast speed	18/24 m/min	18/24 m/min	18/24 m/min
fool type	Turret	Turret	Turret
number of central spindles	1 or 2	1	1

Optional automated production line
Optional tool inspection system
You can click on the image above for details.
Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.
