Factory Price EPS Raw Material Expanding Machine High Capacity

Product Description

Factory price eps raw material expanding machine high capacity Product Description

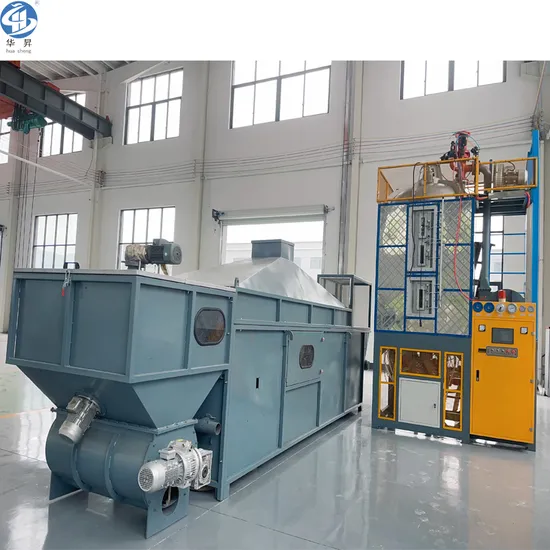

HS-YF Series EPS batch pre-expander machine main features:
It includes main body, feeding device, weighing system, bed dryer and so on; With PLC and touch screen, control barrel temperature , pressure and material level automatically, ensure machine auto running; With material weighing system and photoelectric control of material level to reduce foam density error; The inner barrel is made of stainless steel plate with high-quality closed structure and high thermal efficiency; With Japan steam reducing valve and angle seat valves to control steady steam pressure; The electrical components and pneumatic components used in the machines are all well-known brands at home and abroad; HS-YF Series EPS batch pre-expander machine technical data:

Item		Unit	HS-YF-1100	HS-YF-1500
Barrel	Diameter	mm	Φ1100	Φ1500
	Height	mm	1500	1800
	Volume	m³	1.4	3.2
Steam	Inlet	mm	Φ50	Φ50
	Working pressure	mpa	0.6~0.8	0.6~0.8
Compressed air	Inlet	mm	Φ40	Φ50
	Working pressure	mpa	0.6~0.8	0.6~0.8
Expanding density		g/l	12-30	12-30
Capacity	12g/l	Kg/h	300	600
	18g/l	Kg/h	450	800
	20g/l	Kg/h	600	1000
	30g/l	Kg/h	800	1300
Bed dryer	Steam inlet	mm	Φ25	25
Installing power		KW	15.5	22.5
overall size (L*W*H)		mm	3600*3100*4500	4000*3300*4800
Weight		kg	2500	3500
Workshop height		mm	6000	6000

Detailed Photos
Company Profile
Zhejiang Huasheng Machinery Equipment Co., Ltd, located in Fuyang, Hangzhou City, China, is a manufacturer
for high-end EPS foam machinery and EPS moulds.
Huasheng has developed into a modern and standardized production base with an area of over 18, 000 square meters,
more than 100 employees and a team of highly qualified and educated researchers, and obtained 15 invention patents.
The main products include high-precision automatic pre-expander machine, fully automatic shape molding machine ,
EPS block moulding machine, EPS foam mold, EPS lost foam white area equipment etc.
We warmly welcome all customers and friends from both domestic and abroad.
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a factory of EPS machine and EPS mold.
Q: what is your payment term?
A: 30% down payment upon order confirmation, 70% balance payment before shipment.
Q:what is your delivery time?
A: It takes usually 45-60days for machines, and 25-30days for EPS mold.
Q: Do you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
