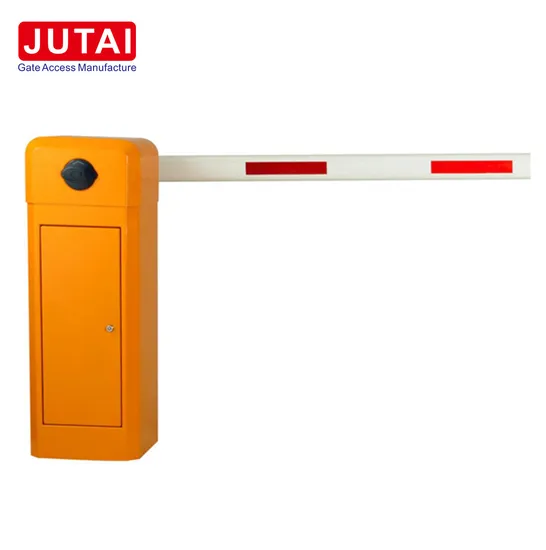

OEM/ODM Speed Adjustable Boom Barrier Gate Automatic Parking Access Control System

Product Description

Product DescriptionJUTAI barrier gate with stable motor and controller, simple cover but very high quality. all with JUTAI loop detector, photocells, long range readers, all is about parking system projects, choose us you will be satisfied.
Product Parameters

Model	BR-110
Power supply	110V/220V
Material	Cold roll plate, galvanized plate or stainless steel varnish baking
Running time	1.5s, 3s, 6s
Boom length	1-6m
Boom size	45*100mm/45*86mm
Weight	50kg
MCBF	≥5,000,000 times
Arm type	Straight arm: 1-6m optional, aluminum alloy
	Fence arm: 2/3 fence arm 1-6m, aluminum alloy
	Folding arm: 90-degree folding/180degree folding
Related products	loop detector, photocell sensor, traffic light, long range reader, access control, parking system
Applications	parking lot toll gate good yards railway crossing commercial premises apartment block

Detailed PhotosJUTAI control board adopts imported components. The circuit adopts advanced MCU and Japanese original Omron high-power relay as the core design. Using mature computer control technology, it develops a new generation intelligent control system, which realizes the intelligent control of gates and other controls.

The tension and the relaxation of the spring are used to achieve the stable rise and fall of the control boom gate. The JUTAI boom gate spring is a double spring, which has the advantages of long service life and corrosion resistance.
JUTAI motors are uniquely designed and patented. The motor is made of copper, Hall limiter, thermal protection.
JUTAI automatic boom gates are equipped with anti-collision arm. When receiving the impulse generated by the impact of the vehicle, the brakes will quickly bounce back to prevent the car from breaking and will not damage the motor.

The thickness of the sheet metal is 2.0mm. The cabinet is designed with a waterproof structure and the surface is treated with a phosphating process. Huacai spraying, high-temperature baking, and car-top coating make the chassis in an outdoor harsh environment. It has the characteristics of anti-corrosion, anti-rust, anti-ultraviolet radiation, and sun exposure, which is not easy to have problems of color fading. Compared with other companies' 1.5mm cabinets, it is more durable and not easy to fade the color.
